PFTC


PFTC ALU


PFT


PFI


PFICL


PFTL

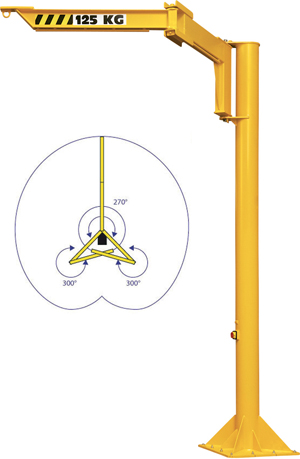

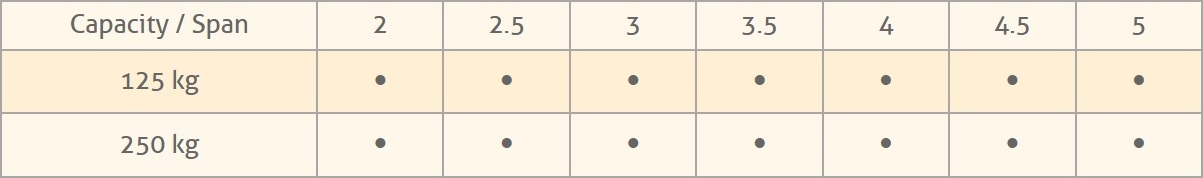

PFA


PFAM


PFSAM


PFSD

  • Fixed and adjustable pillar jib cranes reel holder
  • Pillar jib crane for indoor use.
  • Main arm : partial rotation 245°.
  • Secondary arm : partial rotation 290°.
  • Cablofil provided for passage of beams.
  • Pivot between the two hollow arms, for passing beams.
  • For the adjustable version (PFSDR), fitted with an hydraulic cylinder and manual pump.
  • Protection: polyester powder painting 60 microns C2.
  • Anthracite gray finish RAL 7016.
  • OPTIONS
  • Hot dip galvanizing (contact us).
  • Single or multi-position rotation lock.
  • Rotation stops to weld onto the assembly, or adjustable.
  • Balancer and support arm.

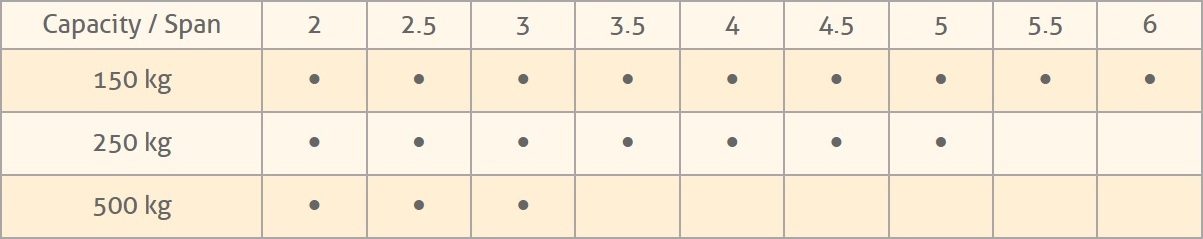

PFTCMOB

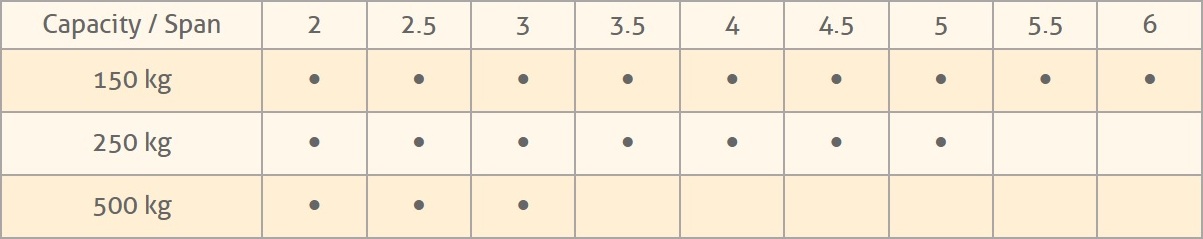

PFTMOB


PFIMOB

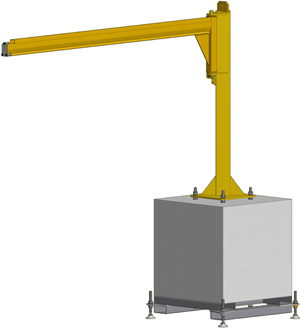

PFICLMOB


PFTLMOB

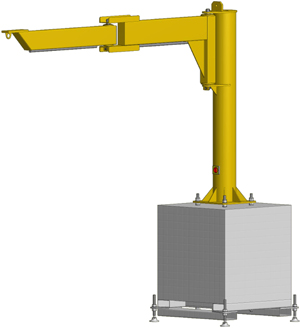

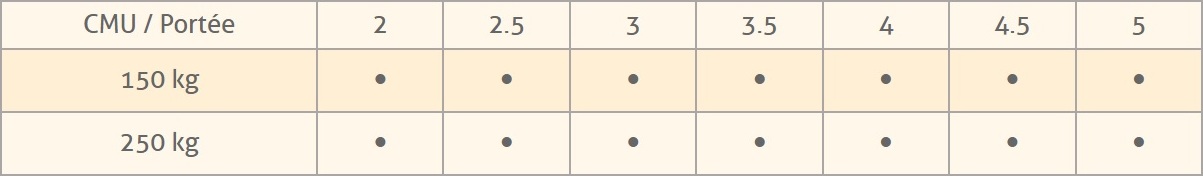

PFAMOB


SS

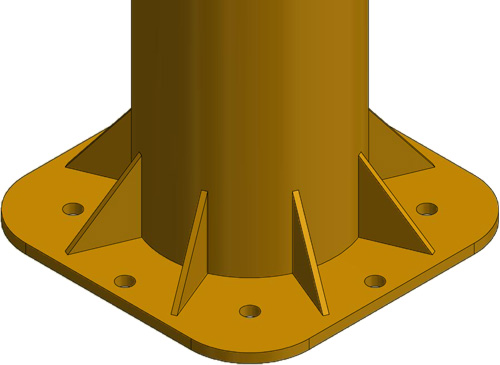

  • Standard base plate for concrete foundation
  • Fixation by anchor rods in the concrete foundation.
  • This technique allows to have a larger floor area around the pillar.

SC

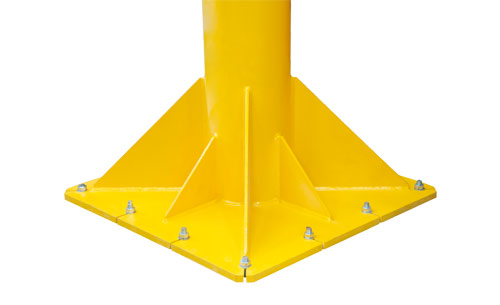

  • Base plate for chemical anchors
    This type of attachment is to be used with the utmost care, when creating a concrete foundation would be impossible. This solution requires a slab of a sufficient depth and quality, which should be verified in accordance with the maximum moment indicated. In any case, we deny all liability regarding the strength of this type of attachment. These base plates cannot be removed from jib crane pillars.
