LEHNER LIFTTECHNIK
STRATOS

- Max. loading capacity: 300 kg
- Max platform sizes: Lenght: 1250 mm; Width: 900 mm
- Speed: 0,06 – 0,1 m/s
- Platform inclination: 0° – 47°
- Power supply: 24 V (battery driven)
- Noise: Under 60 dB
- Powder coated RAL 7035 standard
- All RAL colours optional
- Stainless steel optional
- Option: Folding seat

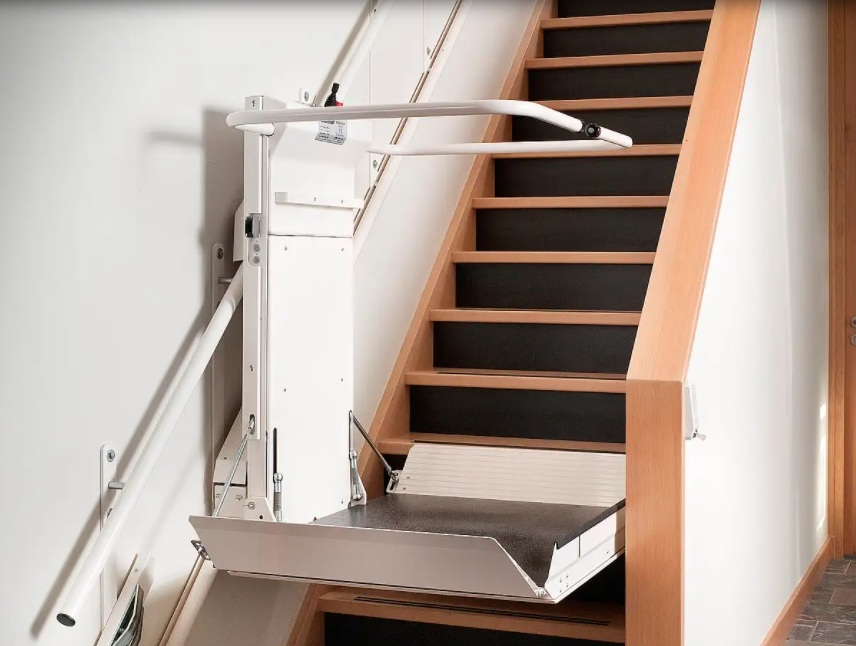

DELTA

- Max. loading capacity: 300 kg
- Max platform sizes: Lenght: 1250 mm; Width: 900 mm
- Speed: 0,1 m/s
- Platform inclination: 0° – 52°
- Power supply: 24 V (battery driven)
- Noise: Under 60 dB
- Powder coated RAL 7035 standard
- All RAL colours optional
- Stainless steel optional
- Other options: Folding seat
OMEGA

- Max. loading capacity: 300 kg
- Max platform sizes: Lenght: 1250 mm; Width: 900 mm
- Speed: 0,06 - 0,15 m/s
- Platform inclination: 0° – 60°
- Power supply: 1x230 or 3x380 VAC
- Noise: Under 60 dB
- Powder coated RAL 7035 standard
- All RAL colours optional
- Stainless steel optional
- Other options: Folding seat, Chairlift version
ALPHA

- Max. loading capacity: 130 kg (145 kg)
- Speed: 0,12 m/s
- Angle of stairs: 0° – 52°
- Motor: 24 VDC (battery driven)
- Power supply: 1x110/220 for charger
- Fold-up width: 37 cm
- Fold-out width: 64,5 cm
ESSENTIAL

- Max. loading capacity: 140 kg
- Speed: 0,08 m/s
- Angle of stairs: 30° – 55°
- Motor: 24 VDC (battery driven)
- Power supply: 1x110/220 for charger
- Fold-up width: 27,3 cm
- Fold-out width: 54,6 cm

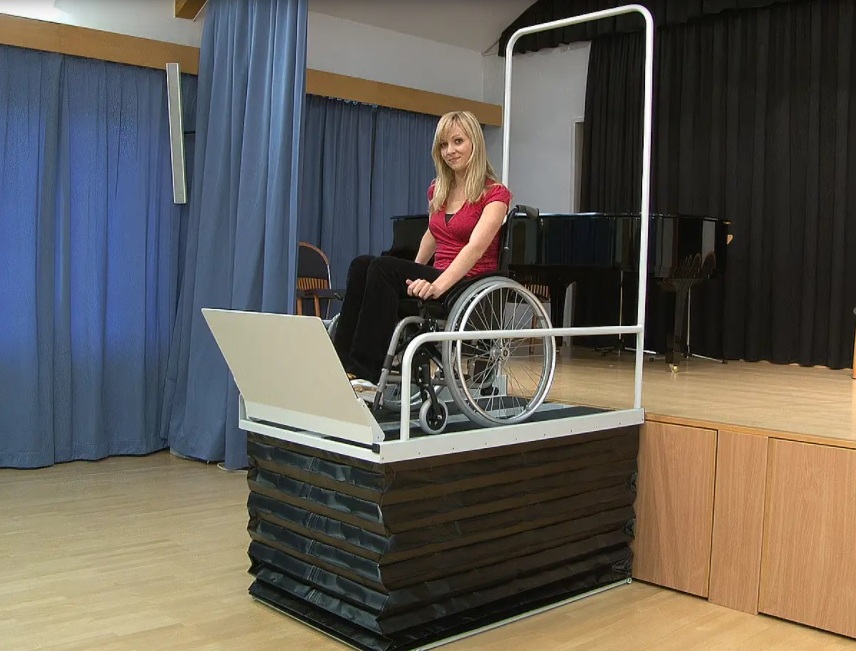

LIFTBOY 1/2/3

- Max. loading capacity: L1 - 180 kg, L2 - 300 kg, L3-240 kg
- Max. lifting height: L1 - 595 mm, L2 - 830 mm, L3 - 970 mm
- Total width: L1 - 810 mm; L2/L3 - 924 mm
- Total lenght: L1 - 1180 mm; L2/L3 - 1505 mm
- Net weight: L1 - 53 kg; L2/L3 - 95 kg
- Speed: 10 mm/s
- Power supply: 1x230 / 24 V
- Powder coated RAL 7035 standard
- All RAL colours optional
- Stainless steel optional
LIFTBOY 5

- Max lifting height: 1300 mm
- Speed: 25 mm/s
- Max. loading capacity: 315 kg
- Platform width: 900 or 1100 mm
- Platform lenght: 1400 mm
- Power supply: 2x12 V (battery driven)
- RAL 7035 standard
- All RAL colours optional
ELEVEX

- Max lifting height: E1 - 1219 mm, E2 - 1829 mm
- Speed: 0,04 m/s
- Max. loading capacity: 340 kg
- Power supply: 1x230 V
ALPIN

- Max lifting height: 4000 mm
- Speed: 0,11 m/s
- Max. loading capacity: 300 kg
- Max. platform sizes: lenght: 1400 mm; width: 1400 mm
- Power supply: 3 x 400 V; 1x230 V (optional)
- RAL 7035 standard
- All RAL colours optional
DOLPHIN

- Max lifting travel: 1600 mm
- Max. loading capacity: 130 kg
- Required water pressure: 4 bar
- Material: Stainless steel AISI 316
STAIRMAX

- Max. loading capacity: 300 kg
- Power supply: 2x6 V (accumulator)
- Max- inclination: 35°
- Weight: 54 kg
SA-S & SA-3

- Max. loading capacity: SA-S – 150 kg; SA-3 - 160 kg
- Min. turning radius: SA-S – 970x970 mm; SA-3 - 1250x1250 mm
- Weight: SA-S – 59 kg; SA-3 - 65 kg
PUBLIC

- Max. loading capacity: 200 kg
- Max- inclination: 35°
- Weight: 115 kg
- Dimensions (L x W x H): 1258 x 757 x 1280 mm
