Dizalični sustavi, ovješenja i oprema

• Max capacity: 2 000 kg
• The loads are easy to handle, thanks to an excellent rolling coefficient.
• Numerous types of fixation, adaptable to any structure.
• The load on the bearing structure is kept to a minimum through the pendular design of the system.
• Monorail tracks, runways and circuits easily extended thanks to the system’s modularity.
• Maintenance is practically zero.
• Great flexibility.
• Minimum loss of headroom.
• Installation and fixation by simple bolting.
• This range of profiles associated with other components like suspensions, manual or electric travelling trolleys and cross travel trolleys enable many lifting solutions to be implemented.
• Monorail tracks.
• Runways.
• Single girder overhead cranes.
• Double-beam overhead cranes.
• Telescopic beams.
• Single or complete circuit systems with change of travel direction by switch or multi-directional turntable.

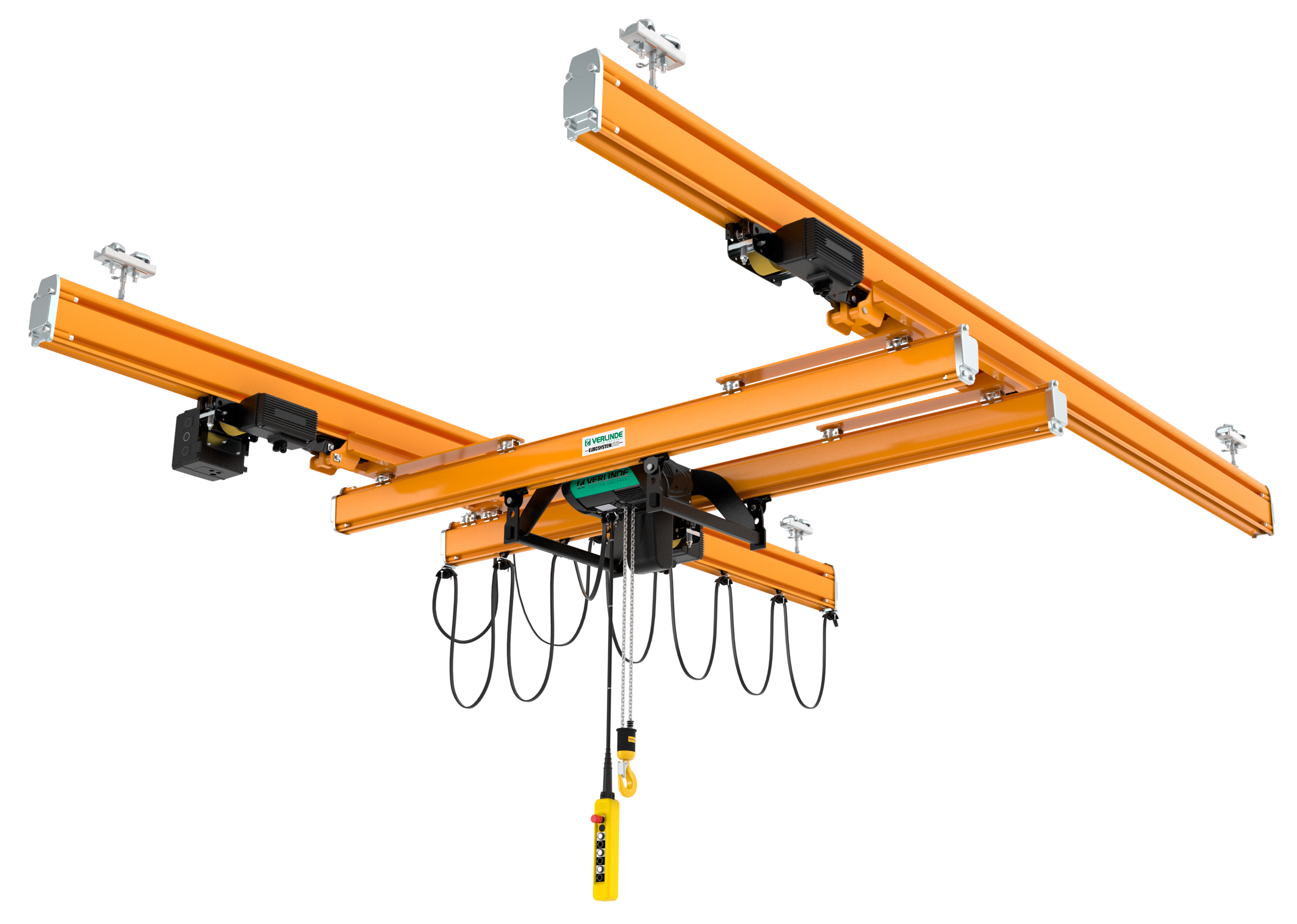

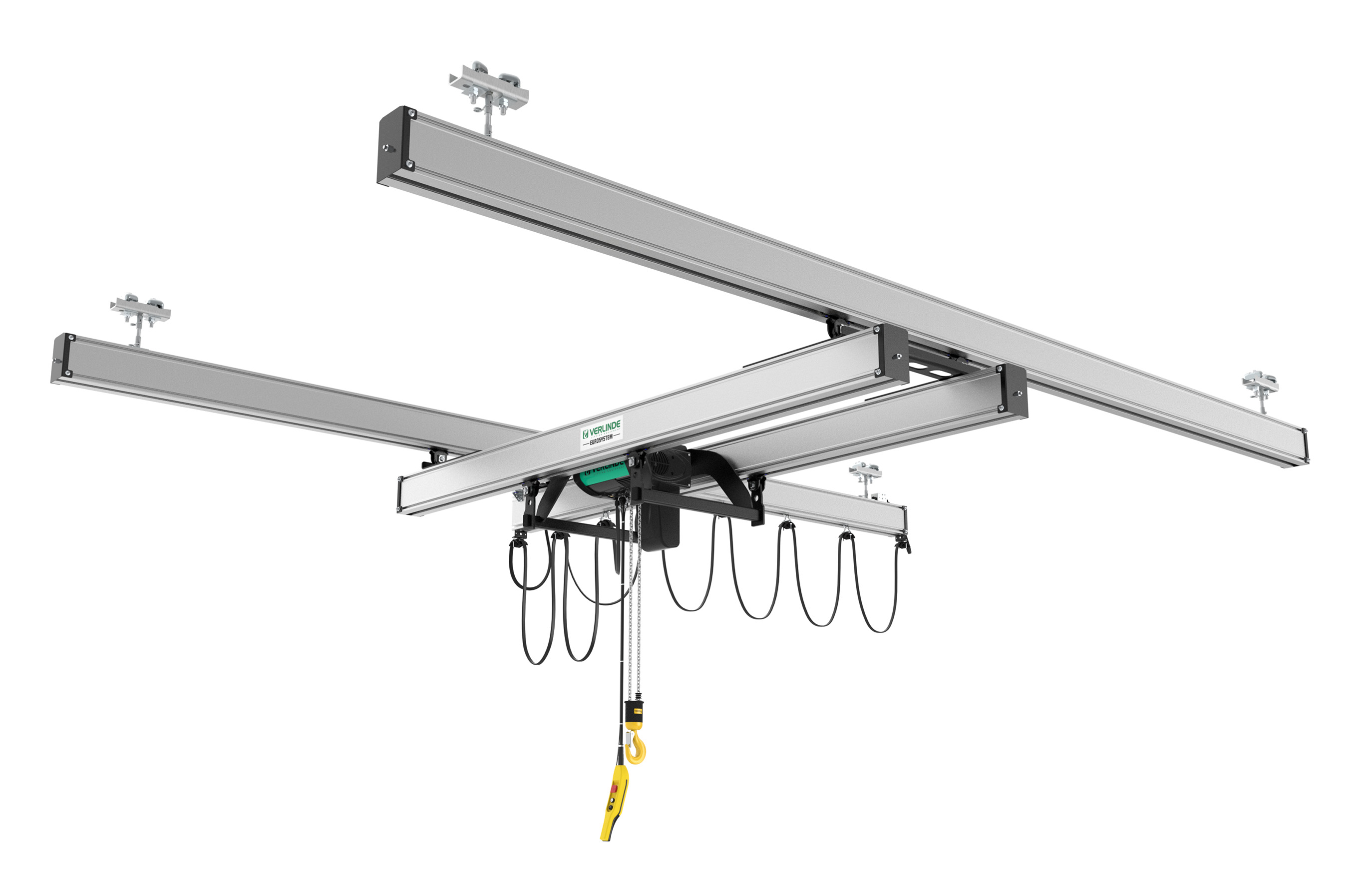

• Max capacity: 2 000 kg
• The loads are easy to handle, thanks to an excellent rolling coefficient.
• Numerous types of fixation, adaptable to any structure.
• The load on the bearing structure is kept to a minimum through the pendular design of the system.
• Monorail tracks, runways and circuits easily extended thanks to the system’s modularity.
• Maintenance is practically zero.
• Great flexibility.
• Minimum loss of headroom.
• Installation and fixation by simple bolting.
• A graded range of 4 sizes of profile. As for steel sections, the selection of the model will depend on the load capacity and the distance between the suspension points.
• This range of profiles associated with other components like suspensions, manual or electric travelling trolleys and cross travel trolleys enable many lifting solutions to be implemented.
• Monorail tracks.
• Runways.
• Single girder overhead cranes.
• Double-beam overhead cranes.
• Telescopic beams.

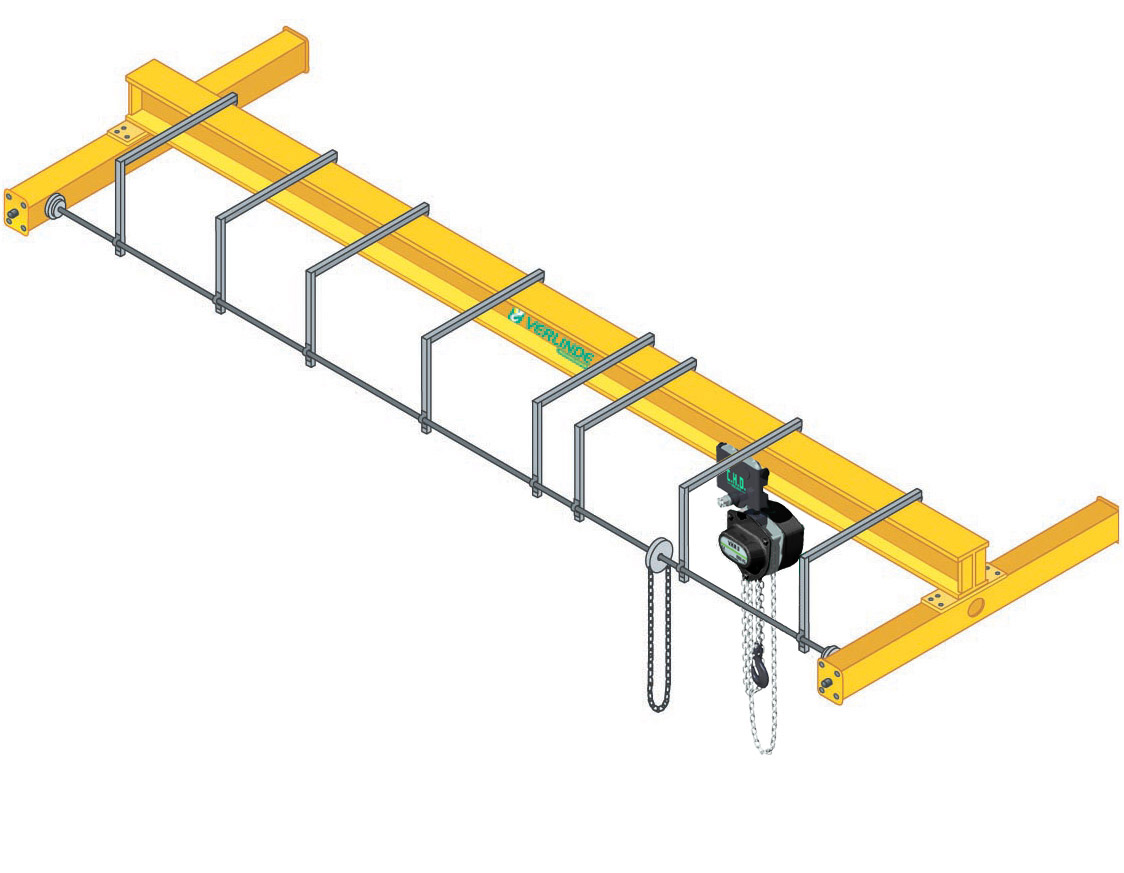

• Max capacity: 250 - 10 000 kg
• Complete crane delivered ready to erect. The runway beam consists of an IPN, IPE, HEA or HEB profile, depending on the load and span, two travel movement support girders equipped with steel machined wheels and buffer.
• Finish in RAL 1028 glycerophthalic lacquer.
• Delivered with assembly and dimension drawings and reaction calculations.
• SWL plate & safety marking.

Eurosystem_STD_ALU_gb.pdf

• Max capacity: 300 - 500 kg
• Aluminium dismountable jib crane, 360° slewable
• Span adjustable to radius of 1.50 m
• 3 or 4 elements make up the jib crane, very fast assembly
• Can be easily moved about and stored using the carry bag(s)
• Slewing system is highly flexible by means of the swivel mounted in bearings
• RAL powder-coated on anodized surface (very robust and shock-resistant)
• 2 different heights available by means of 2 extension pieces of different lengths (delivered as standard)
• Supplied with 2 stainless steel shackles for securing lifting block or accessory

PAL_gb.pdf

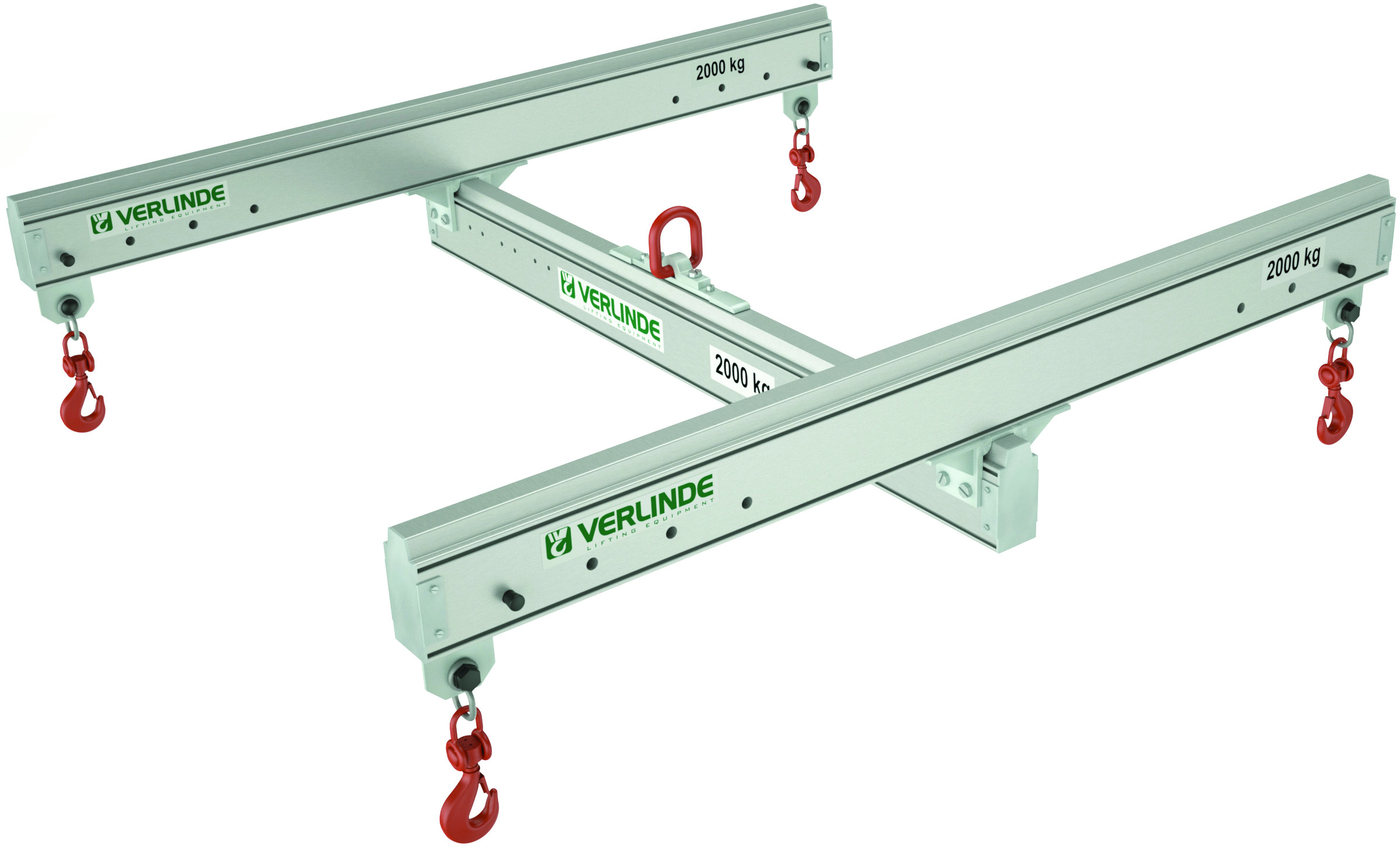

• Max capacity: 125 - 2 000 kg
• Span: 1 - 6 m
• Fitted with swivel hooks with forged safety clips
• Tear-resistant eyelet for use with synthetic slings, cables, etc
• Anodized aluminium profile, rust-proof
• Safety coefficient : 4
• No load-bearing welding
• Manufacture in accordance with standard NFE 52210
• FEM 5 group
• Hooks adjustable by movable spindles for adjustable beams only)
• Adjustable by step of 100 mm for adjustable beams only)
• Lifting speed: 16 m/mn maxi
• Delivered with instructions for use and maintenance, EC certificate of conformity

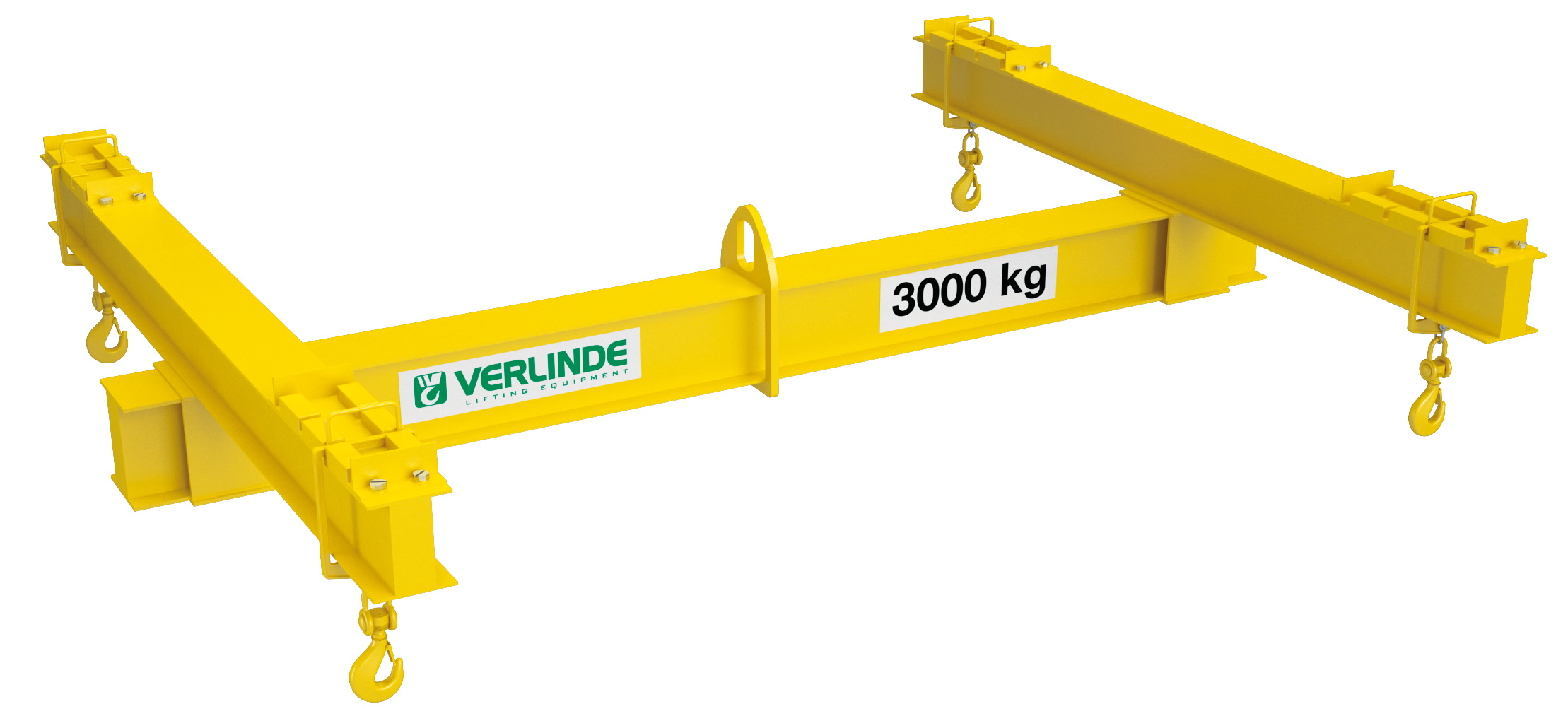

• Max capacity: 1 000 - 10 000 kg
• Span: 1 - 6 m
• Fitted with 2 articulated forged safety swivel hooks
• Tear-resistant eyelet for use with synthetic slings, cables, etc
• Rustproof paint with high-strength yellow RAL 1028 finishing
• Safety coefficient: 4
• No load-bearing welding
• Manufacture in accordance with standard NFE 52210
• Group: FEM5
• Hooks adjusted by means of upper handles (adjustable spreaders)
• No 100 mm adjustment as standard (adjustable spreaders)
• Hosting speed = maximum 16 m/mn
• Delivered with instructions for use and maintenance, EC certificate of conformity

Equibloc_Air_2011_gb.pdf

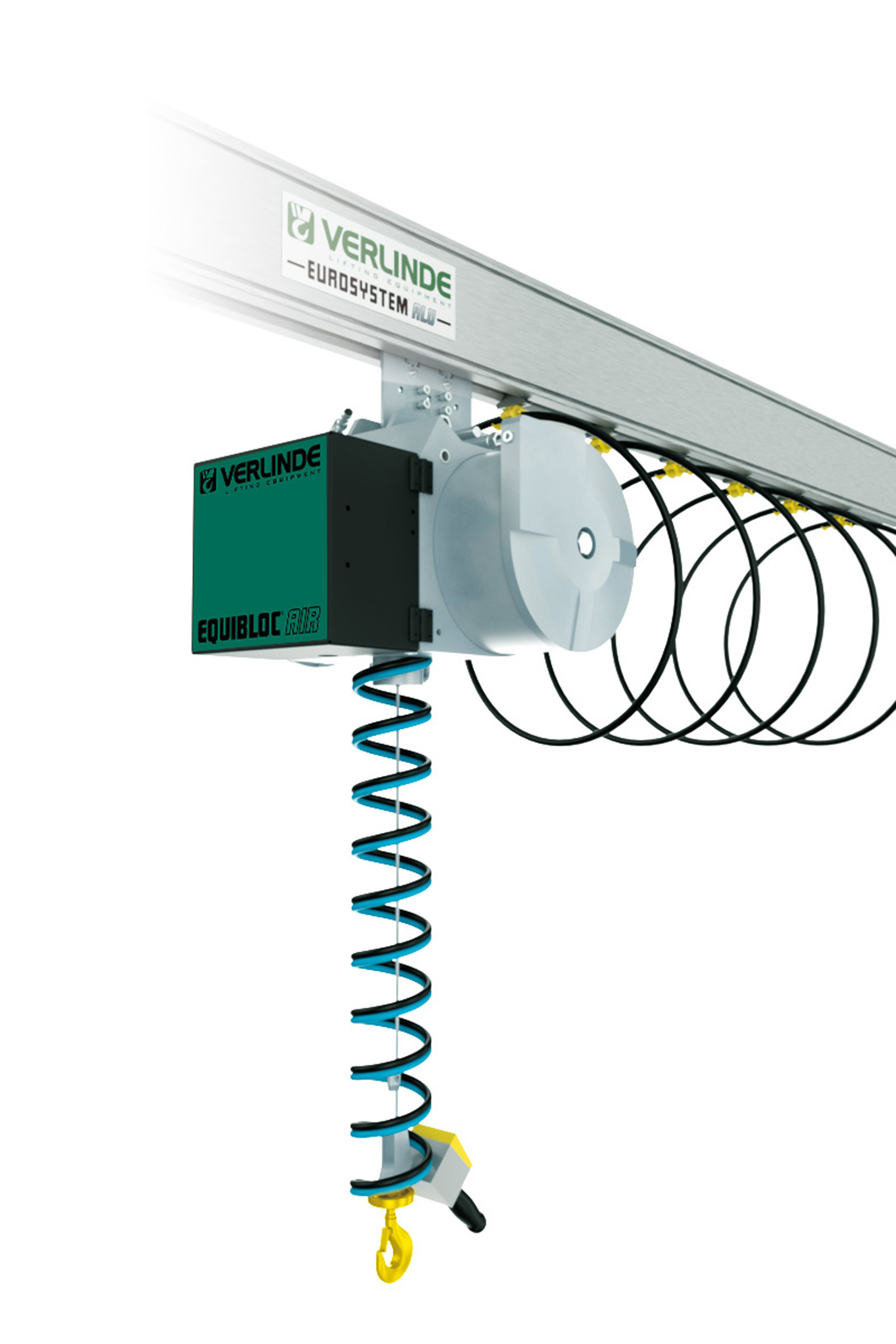

• Max capacity: 70 - 350 kg
• VERLINDE, EQUIBLOC AIR pneumatic load balancers come with the following standard equipment: lift and lowering control circuit, 6m of cable, spiral flexible control conduit, valve-box type control interface and an automatic hook.
• The following special safety features are also standard: pneumatic measurement load balancing, lift and lowering control unit with balancer mode switch, under-load detection, grip locks (where applicable) if load is lift and with safety valve to keep pressure in tank if the control tube is cut.
• The EQUIBLOC AIR range includes five models of load balancers for loads from 70 kg to 350 kg.

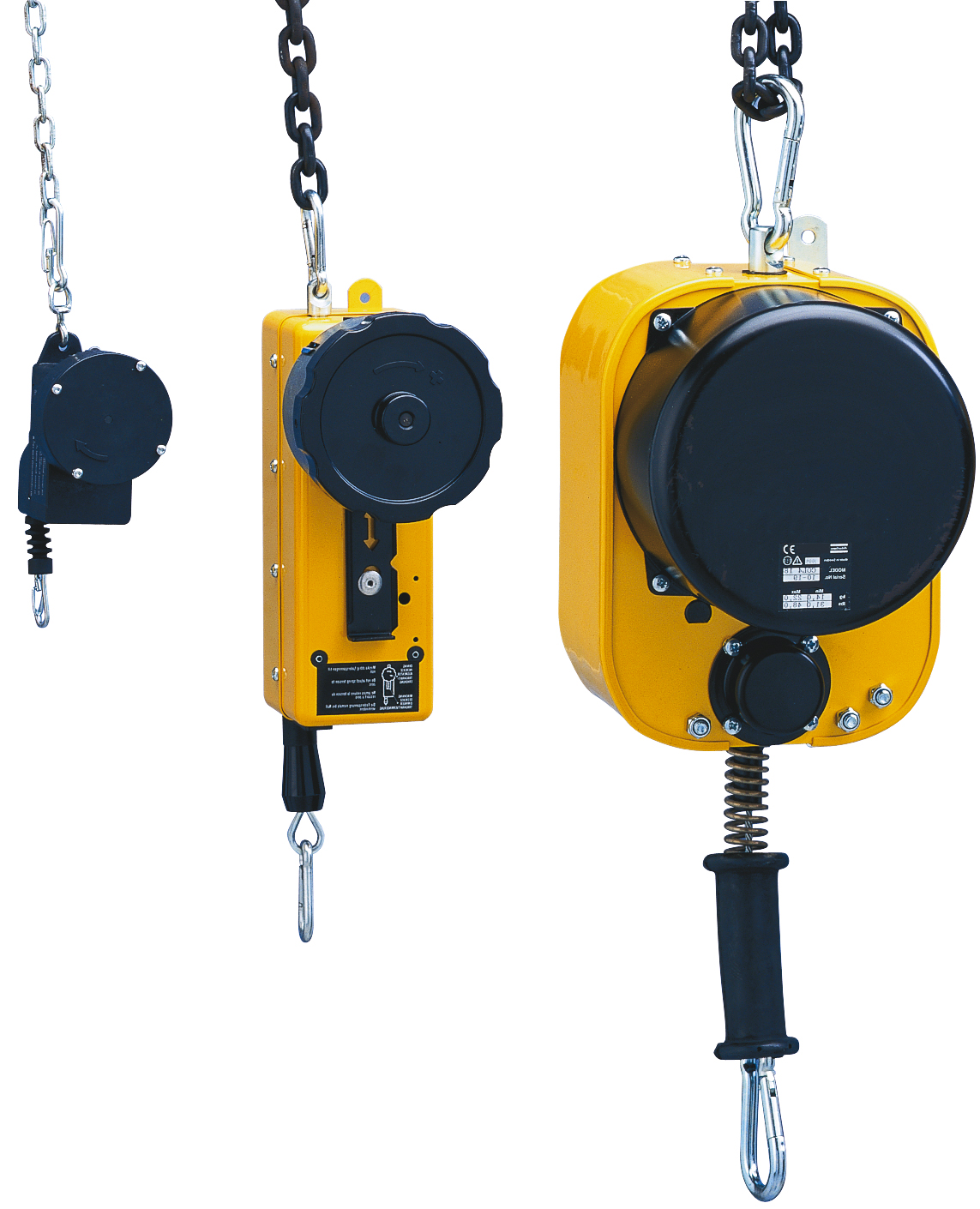

• Max capacity: 0,7 - 55 kg
• The complete balancer fitted with rope and lower hook
• With integrated rope guide for the K 32 & K 22
• With integrated rope guide and axles mounted on ball bearings for the K 4

PAP_gb.pdf

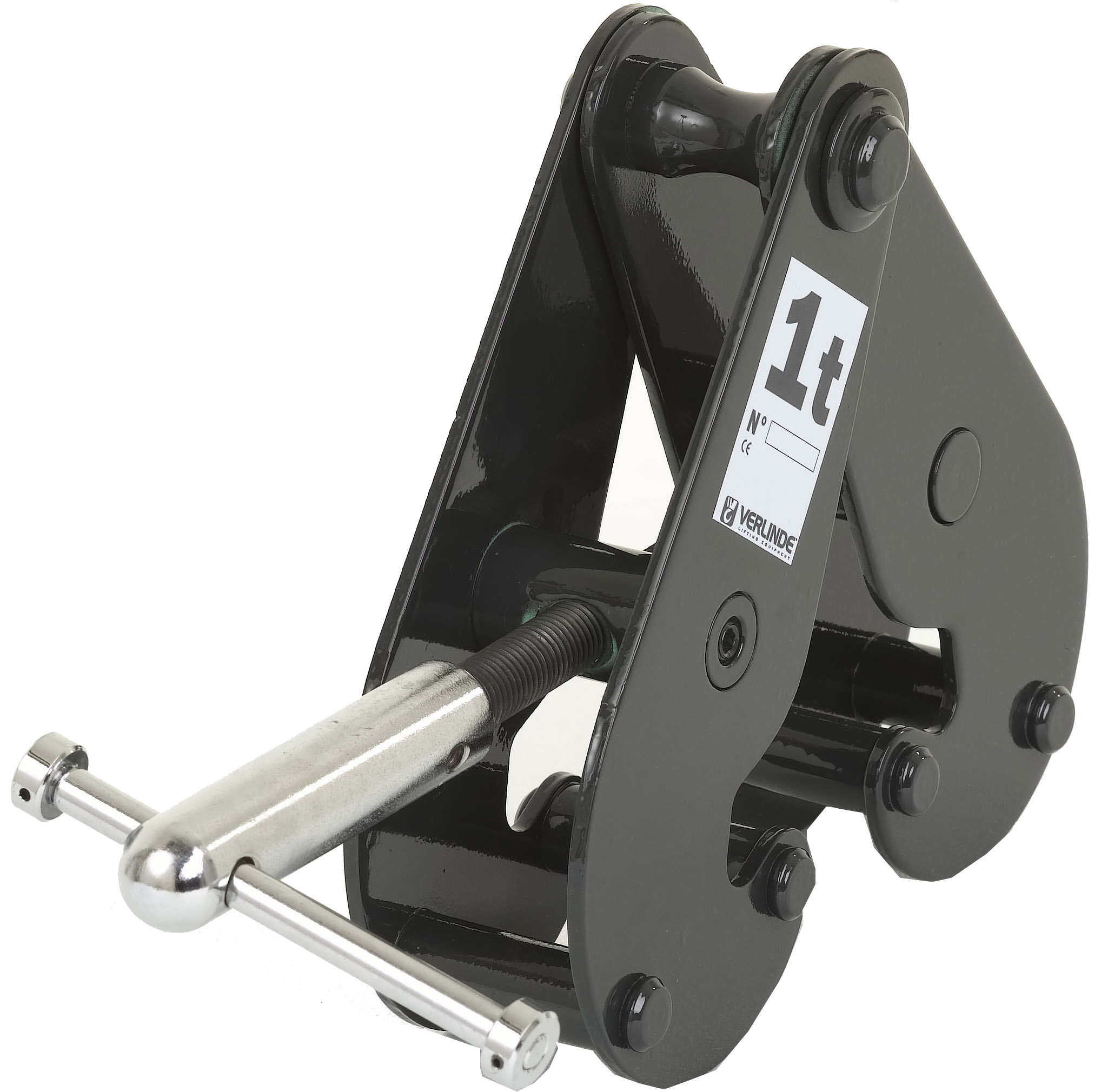

• Max capacity: 1 000 - 5 000 kg
• The PAP enables a lifting device to be hooked in fixed position from a girder, an attachment point for hoisting profiles, installation of mechanical limit switch (stop) at low cost... Its applications are limited only by your imagination!

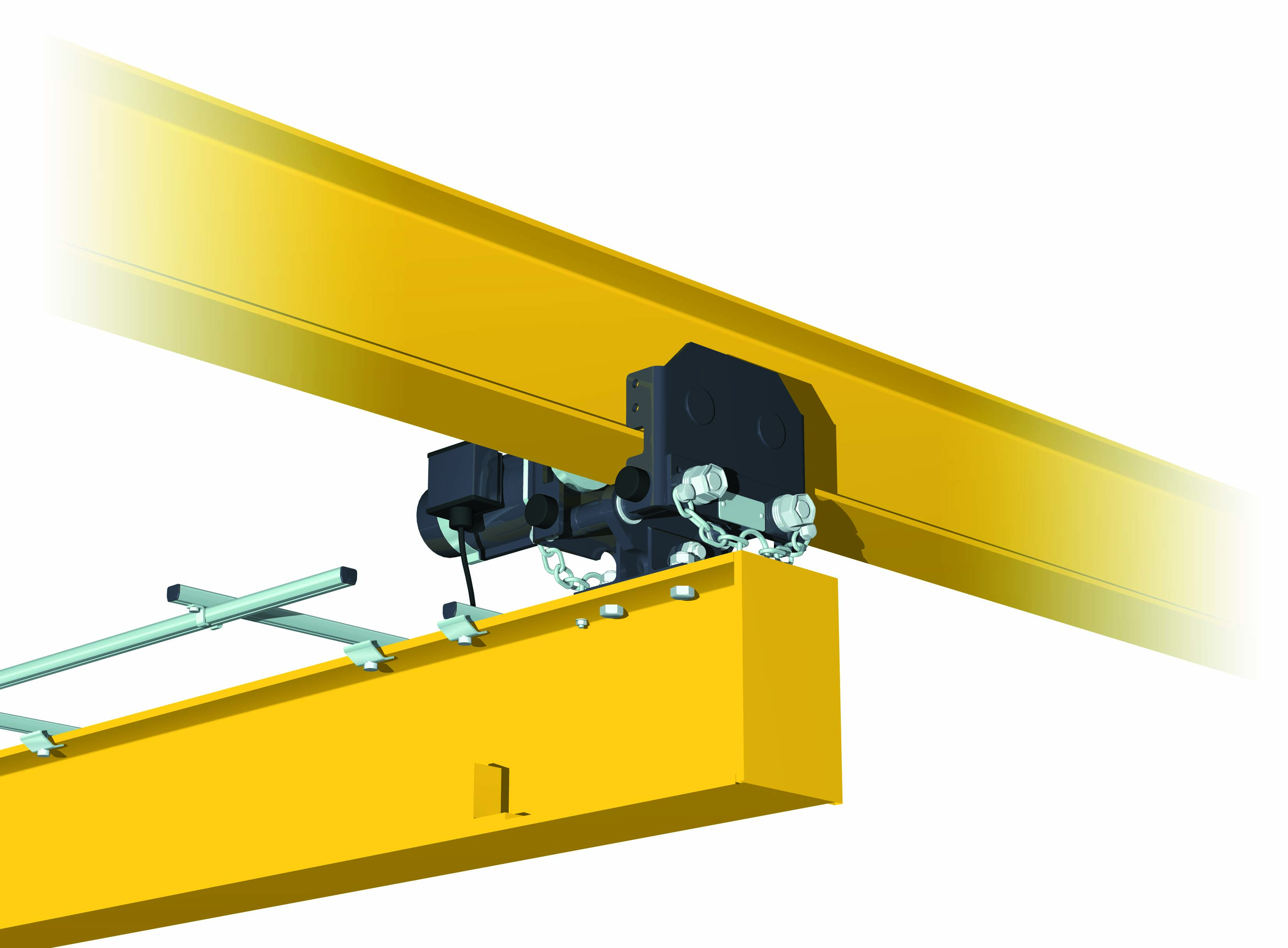

• Max capacity: 250 - 2 000 kg
• The ideal solution for electrically-powered articulated sliding girders with spans of up to 12 meters. The PRV offers a low-cost solution for powered shifting of loads of 250 to 2,000 kg along any type of monorail type steel section.

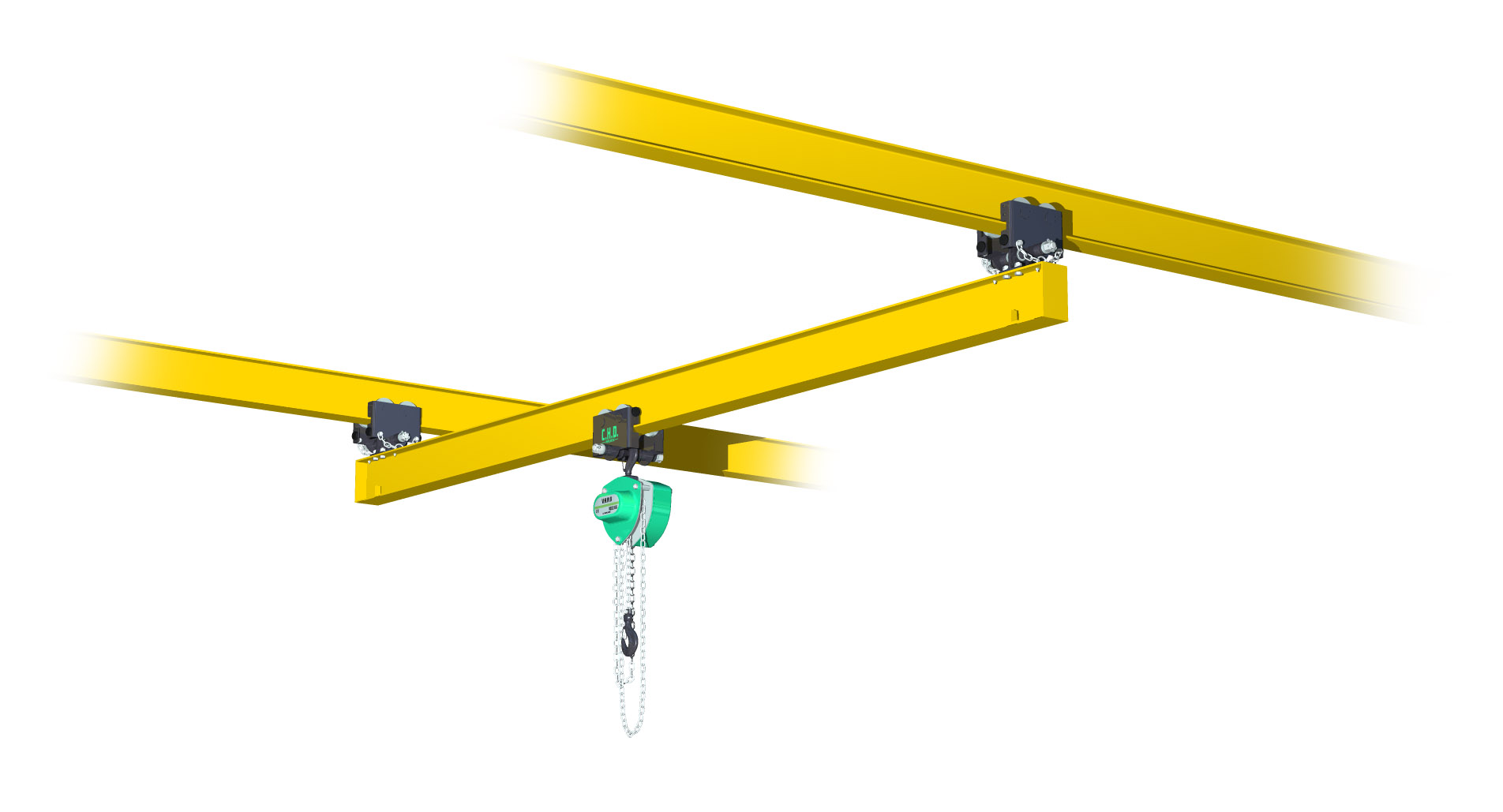

• Max capacity: 250 - 2 000 kg
• The ideal solution for hand-operated articulated sliding girders with spans of up to 8 metres. The PRD offers a low-cost solution for moving loads of 250 to 2,000 kg by pushing them along any type of monorail type steel section.

• Max capacity: 63 - 3 200 kg
• The CHVX enables any type of hoisting device to be hung.
• Variable travel movement speed 5 to 20 m/min.
• Gap between flanges adjustable enabling it to be adapted to all types of IPN, IPE, HEA or HEB straight or curved profiles.
• Protection is IP66 in standard.
• Class F motor protection system.
• 4 rubber stops.
• Trolley delivered non assembled.
• Low voltage electrical cabinet.

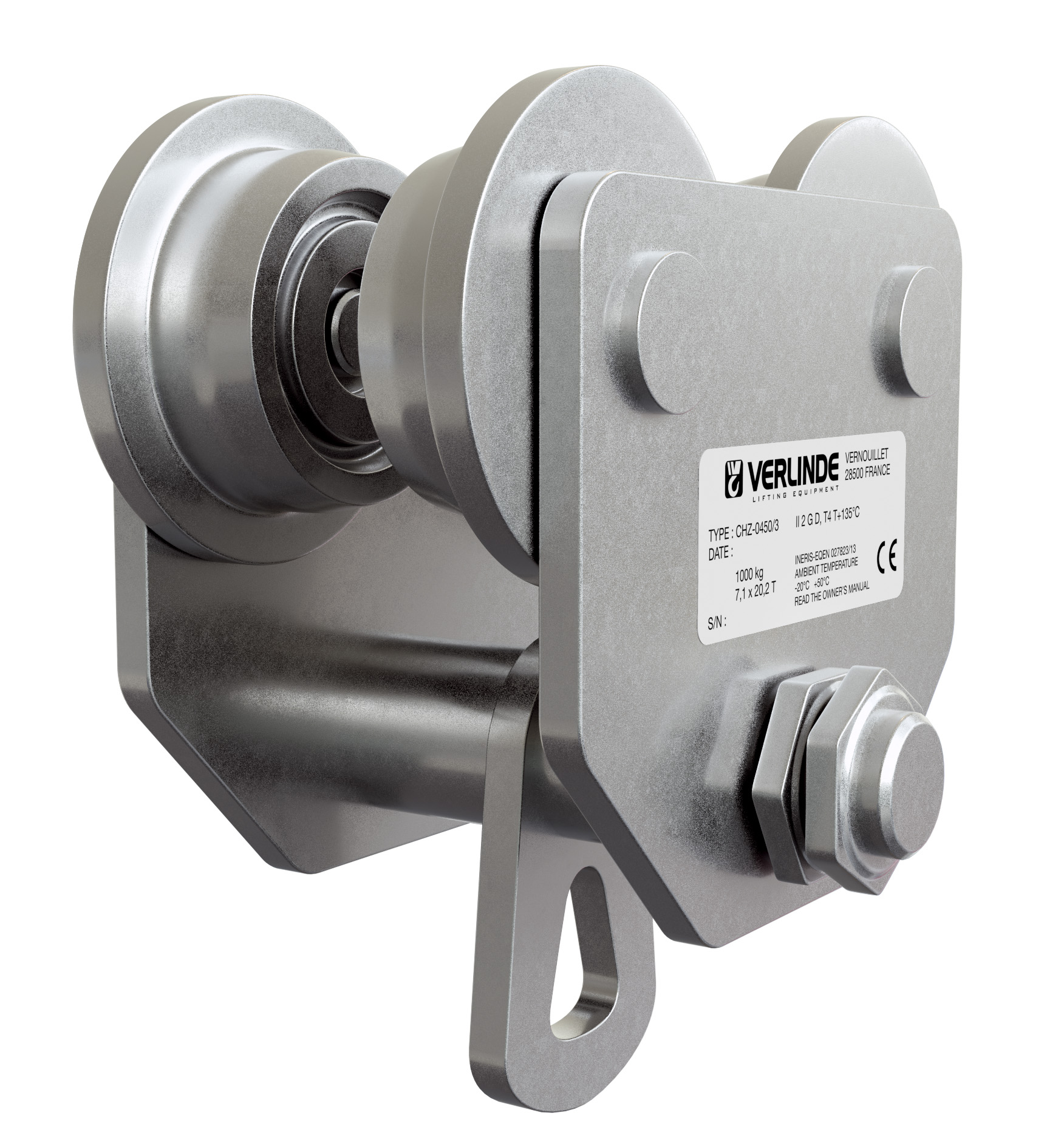

• Max capacity: 500 - 1 000 kg
• CHZ INOX trolley totally Stainless steel : end plate, suspension beam, load wheel.
• The CHZ INOX trolley may be used with any typeof manual lifting equipment fitted with a hook.
• Push travel trolley.
• Stainless steel load wheel made on machine center for smooth motion.
• Stainless steel load wheel compatible with all type of profile I or H.
• Bearing are dust protected and maintenance free.
• Serial number on plate fixed on the frame.
• CE certificate.
• Surface Treatment : Electrolytic Polishing.

• Max capacity: 1 000 - 100 000 kg
• Can be used with any type of overhead hooked lifting device.
• Operated by directly pushing the load (CHZD models) or using a hand wheel and chain (CHZDD models).
• Epoxy Painting (min. 50 µm).
• Easily adjustable to fit beams.
• Steel rollers machined for smooth movement.
• Trolley body made of high-resistance steel.
• Rollers compatible with all sorts of I and H beams.
• Wheel ball bearings are moisture-tight and maintenance free.
• Galvanized hand chain on CHZDD type.
• Loads up to 100 tons.
• Delivered with CE certificate.

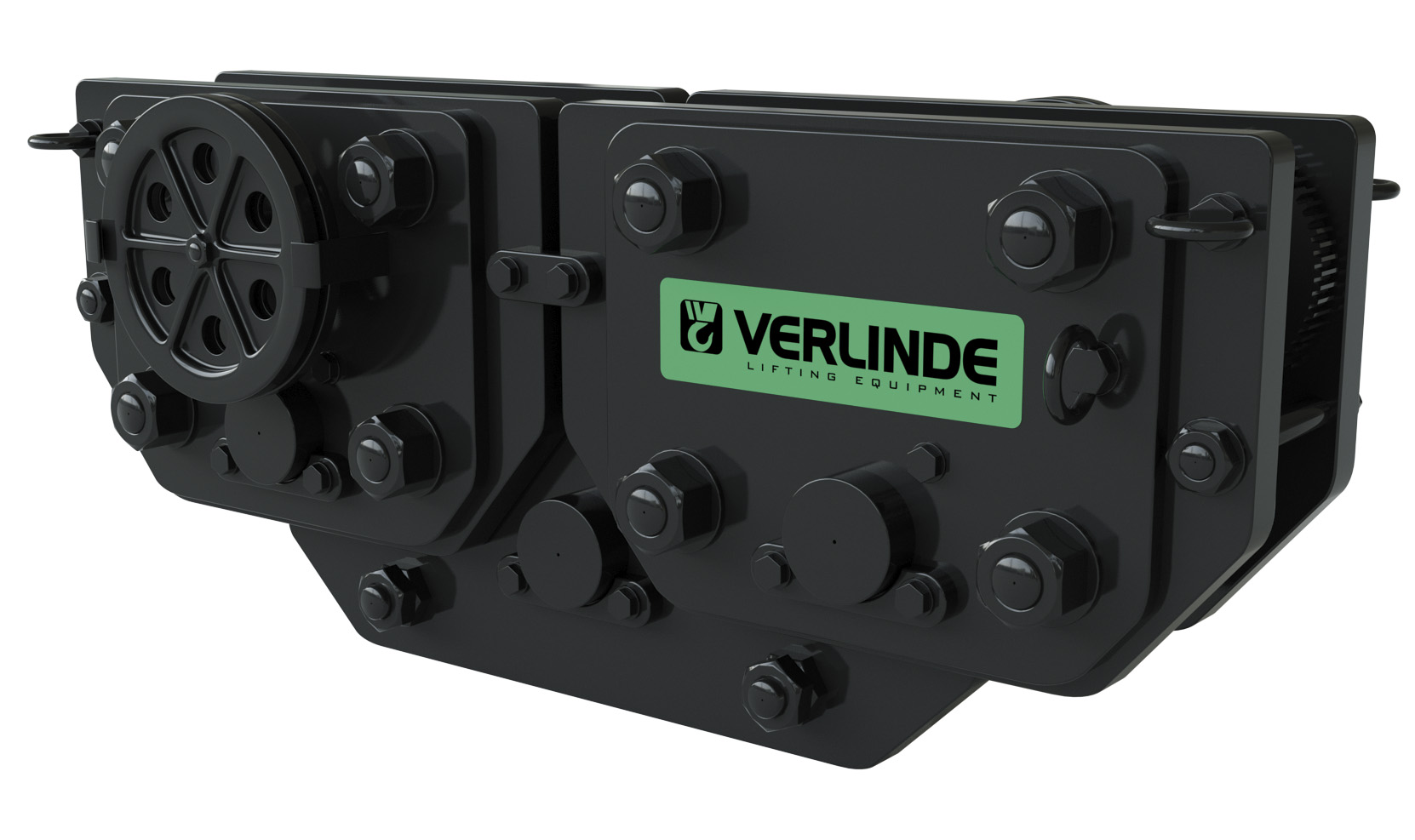

• Max capacity: 250 - 20 000 kg
• The distance between flanges can be adjusted as required
• Travel movement is imparted either by pushing, or by hand wheel and chain
• Delivered ready to assemble in individual boxes



Options available:

• Stainless steel load chain
• Ex version with ATEX markings
• Chrome-plated version of trolley available
