Električna vitla i dizalice

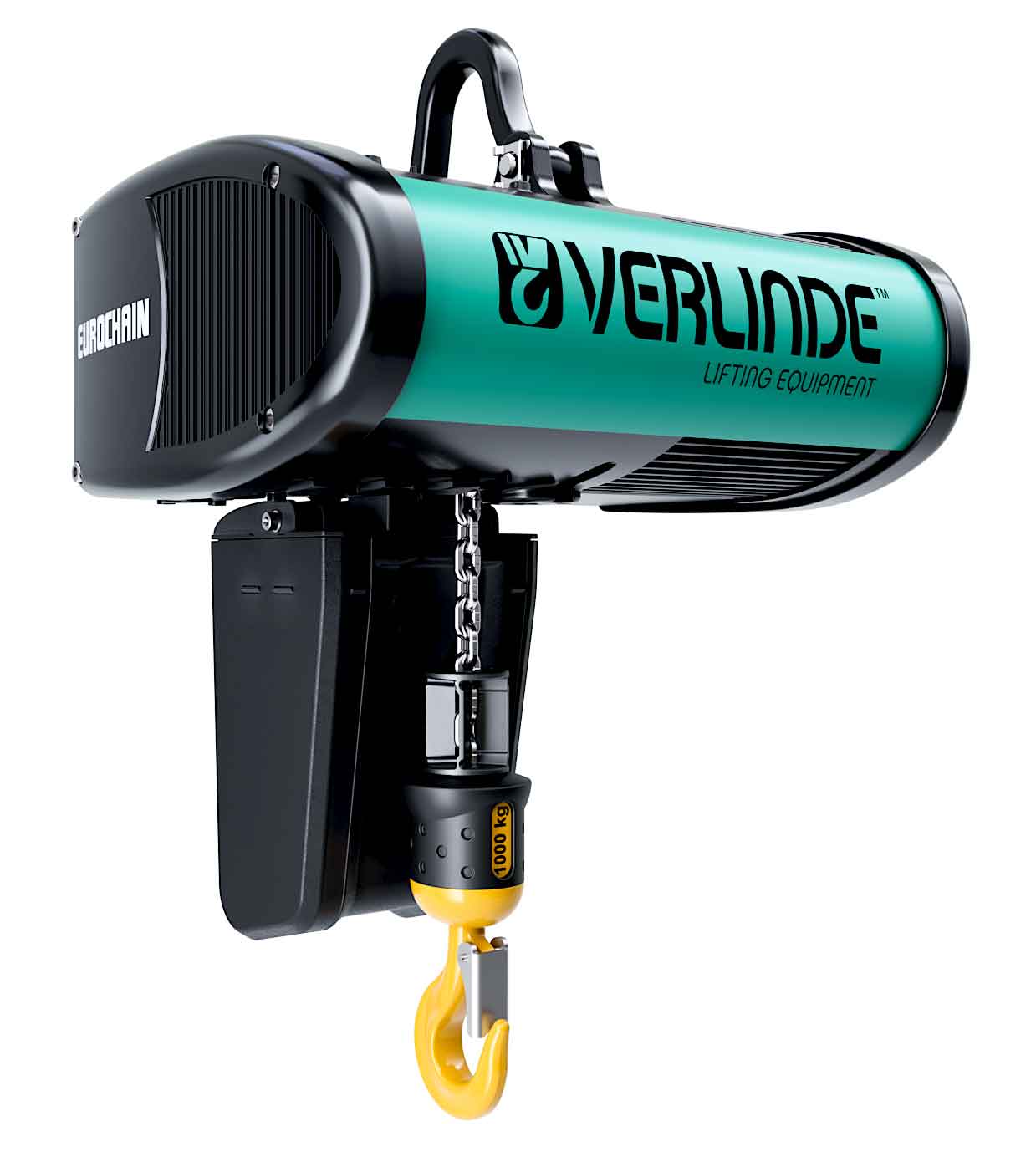

EUROCHAIN VX

EurochainVX.pdf

  • Max capacity: 63 - 2 500 kg
  • 2 hoisting speeds
  • Lifting height: 3 m
  • Supply voltage: 400 V, 50 Hz
  • Safety limit switch up and down
  • Galvanized load chain + chain collector
  • Removable pendant, low control voltage 48V + emergency stop.
  • Torque limiter

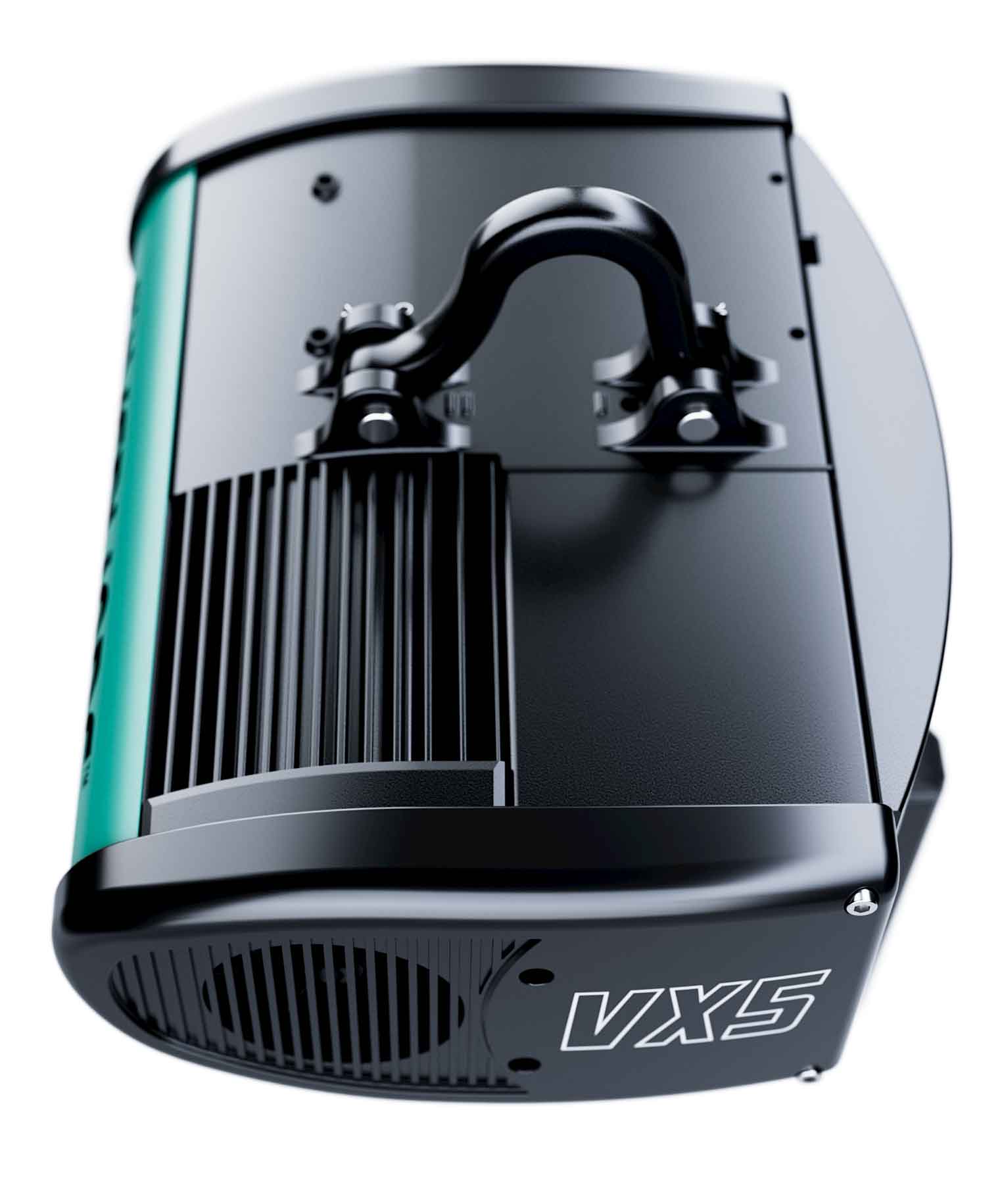

EUROCHAIN VX-S

EurochainVX-S.pdf

  • Max capacity: 125 - 2 000 kg
  • 1 hoisting speed
  • Lifting height: standard 3 m (higher height of lift available as option)
  • Supply voltage: 400 V, 50 Hz
  • Safety limit switch up and down
  • Galvanized load chain + chain collector
  • Removable pendant, low control voltage 48V + emergency stop.
  • Torque limiter

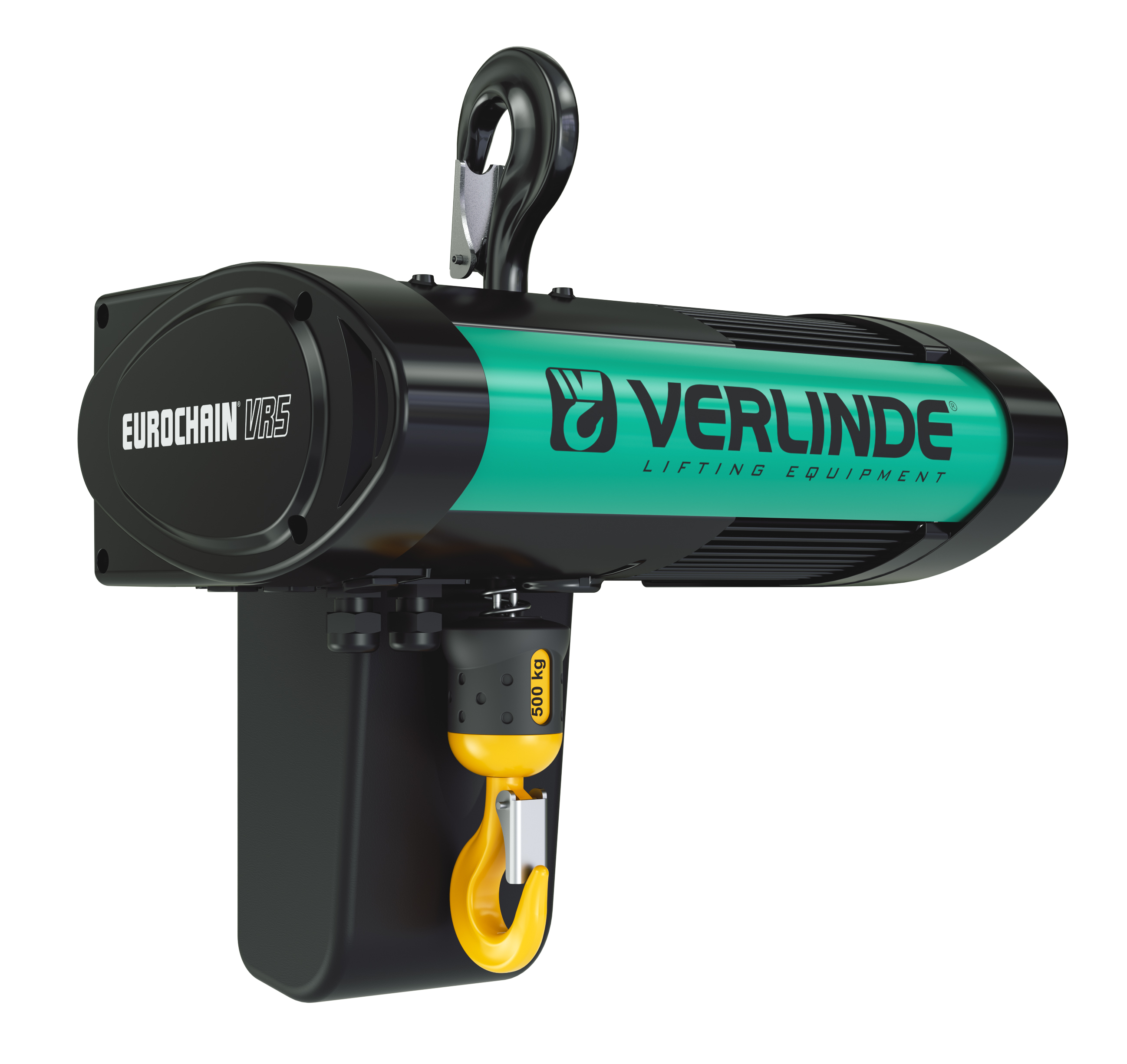

EUROCHAIN VR

EurochainVR.pdf

  • Max capacity: 800 - 10 000 kg
  • 2 hoisting speeds
  • Lifting height: standard 3 m (higher height of lift available as option)
  • Supply voltage: 400 V, 50 Hz
  • Safety limit switch up and down
  • Galvanized load chain + chain collector
  • Removable pendant, low control voltage 48V + emergency stop.
  • Torque limiter

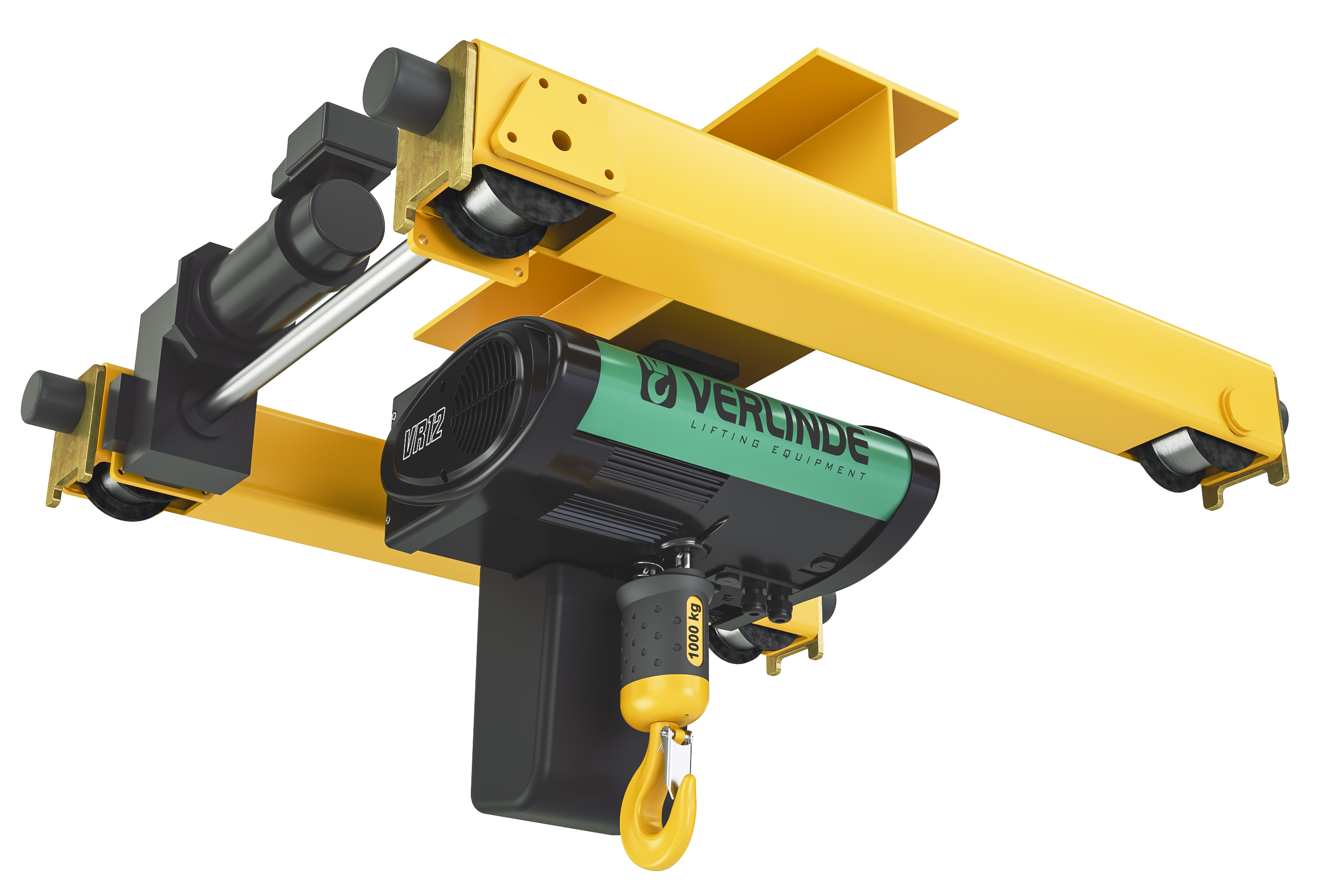

EUROCHAIN VARIO

  • Max capacity: 125 - 2 500 kg
  • Stepless hoisting speed through inverter control.
  • Adjustable acceleration/deceleration ramp time.
  • Brake control with supervision.
  • Over speed supervision.
  • Clutch slippage supervision.
  • Electronic overload prevention through load sensor.
  • Shock load control.
  • Hour counter, start counter, SWP calculation.
  • Active polygon damping, 50% reduction (only for Europe).
  • Power supply 380 to 480V/3Ph/50Hz 60 Hz.
  • Low voltage control 48 V (115 or 230 as option).
  • Variable travelling speed on electric trolley.

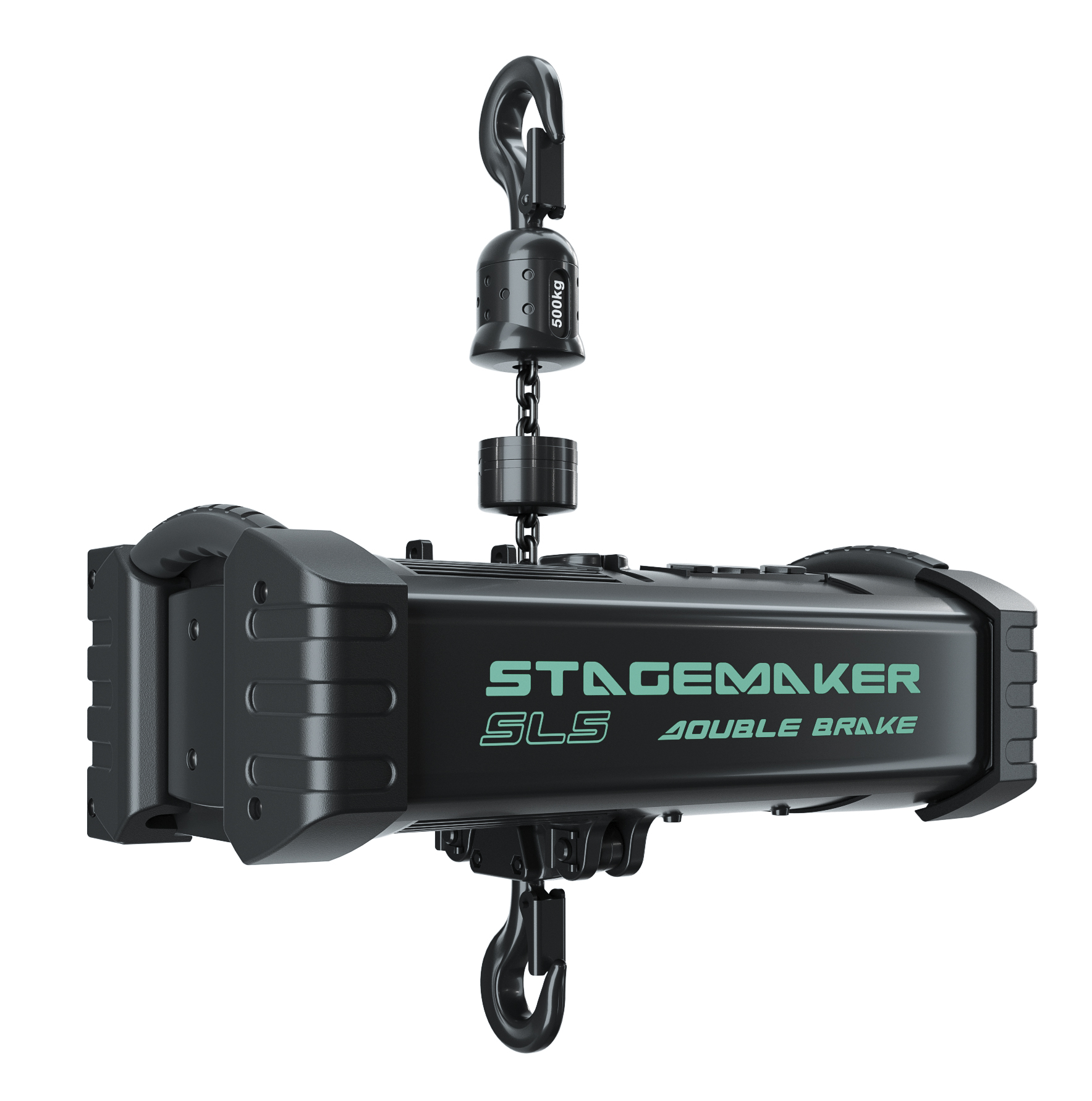

STAGEMAKER SL/SR

StagemakerSL.pdf

  • Max capacity: 125 - 5 000 kg
  • Backed by this ongoing policy of innovation, constant upgrading in tune with current technologies and worldwide regulation (CE, DIN), the STAGEMAKER SL range of hoists will further prove that Stagemaker is Raising the Standard of Performance in the entertainment market.
  • Stagemaker SL5 (maximum load 500 kg) and Stagemaker SL10 (maximum load 2000 kg) complete the range of Stagemaker SR.

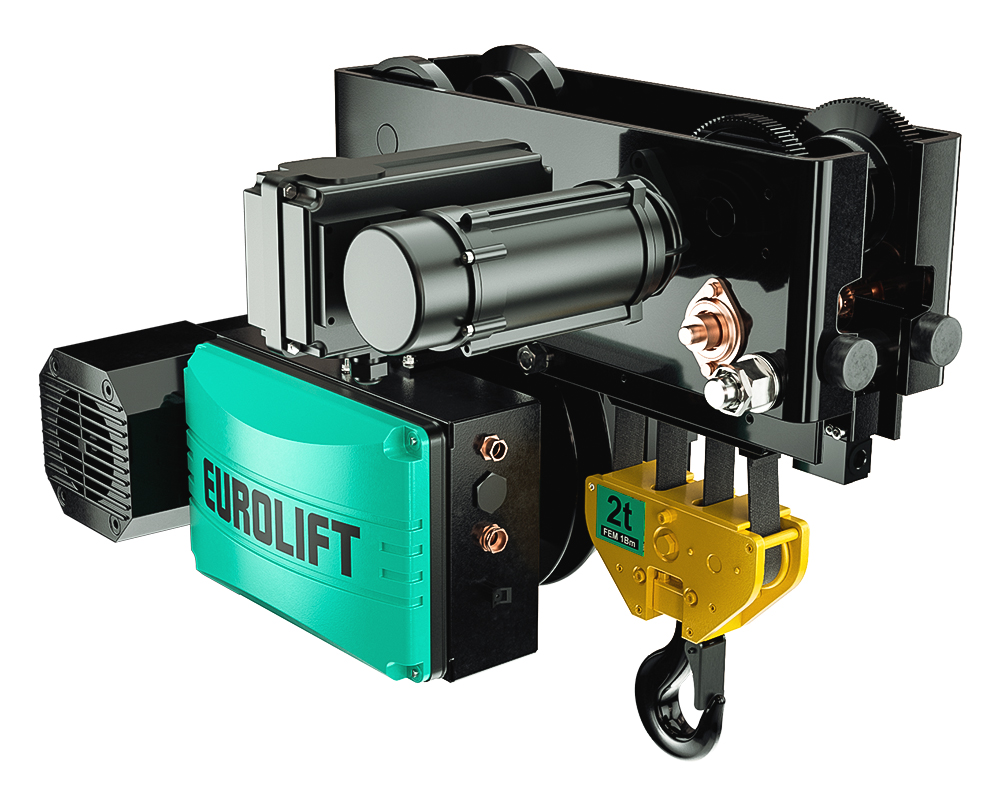

EUROLIFT BH

EuroliftBH.pdf

  • Max capacity: 500 - 5 000 kg
  • Anticorrosion product with high strength rot-proof belt
  • Exceptionally little loss of headroom, enabling the EUROLIFT BH to adapt to all your installation configurations
  • Lift motor with two mechanically variable speeds and two speed travel movement motor (complying with standard EC 34.1/IEC 34.2, IP 55 protection and insulation F) combined with
  • perfectly sealed reduction gearing enabling your loads to be shifted silently with great precision
  • A high security belt guide, electric hoisting limit switch and electrical load limiter as standard equipment, ensuring you, as user, maximum safety in every situation
  • Variable speed travel motor for precise positioning of loads

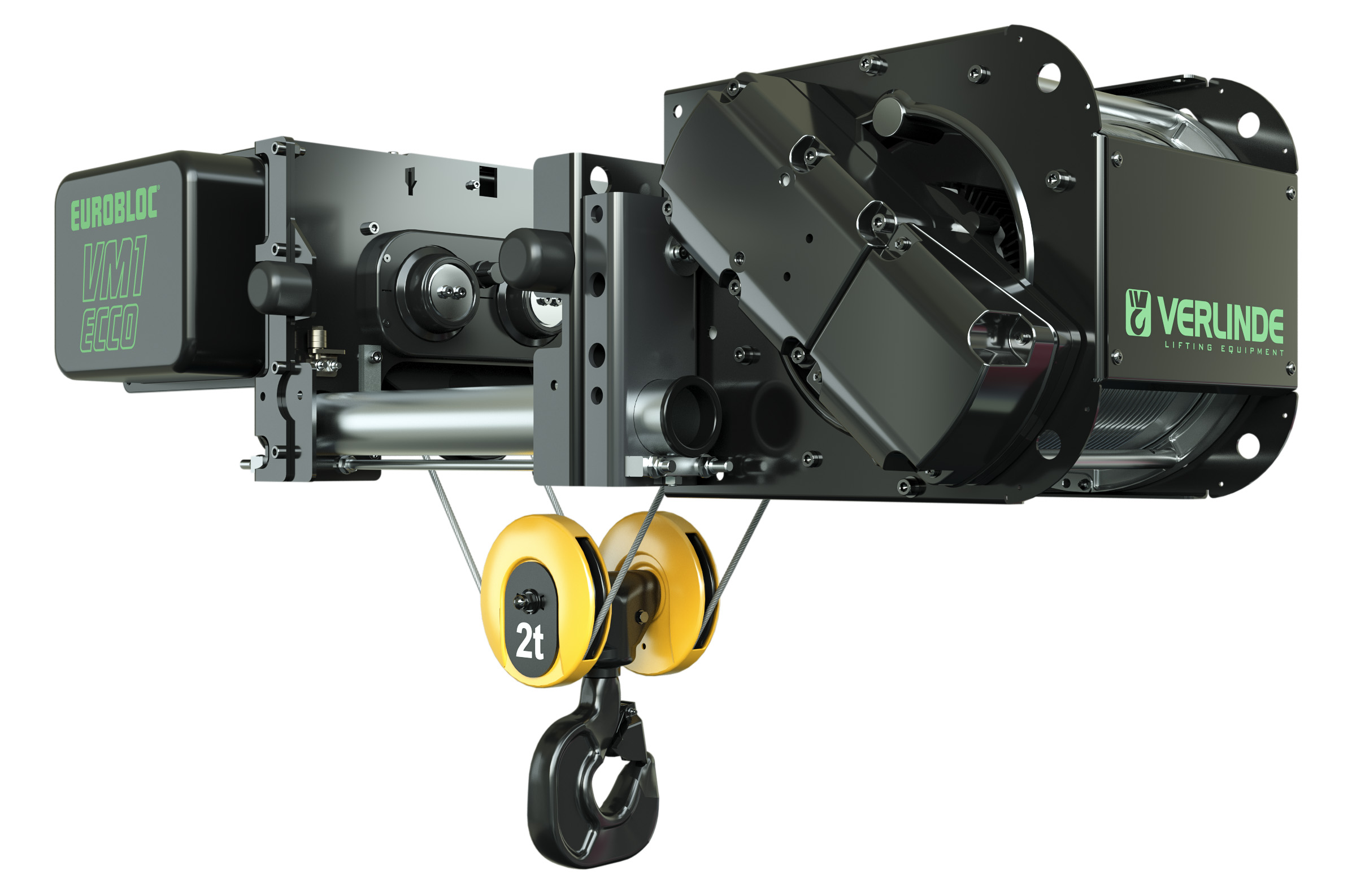

EUROBLOC VM ESSENTIAL

EuroblocVM_Essential.pdf

  • Max capacity: 2 000 - 20 000 kg
  • Electro mecanical load limiter
  • Hoisting limit switch.
  • 2 travelling and hoisting speed.
  • Galvanized wire rope, high safety factor (Coef. 4,6 in 2m group).
  • 2 step travelling limit switch.
  • IP 55 protection
  • Low voltage control (48 V) for higher safety.
  • Rotating hook with safety latch.
  • Lifting brake designed for hoist unit lifetime in normal use.
  • Lifetime lubricated lifting gear box.
  • Lifetime lubricated travelling gear box.
  • Very high performance for difficult environments.
  • Modular assembly concept to reduce number of spare parts.
  • Hoisting motor. 60 % operating factor and tropicalized as a standard for greater longevity.
  • Bearing of hook and hook block are lifetime lubricated.
  • Control by pendant or radio emitter.

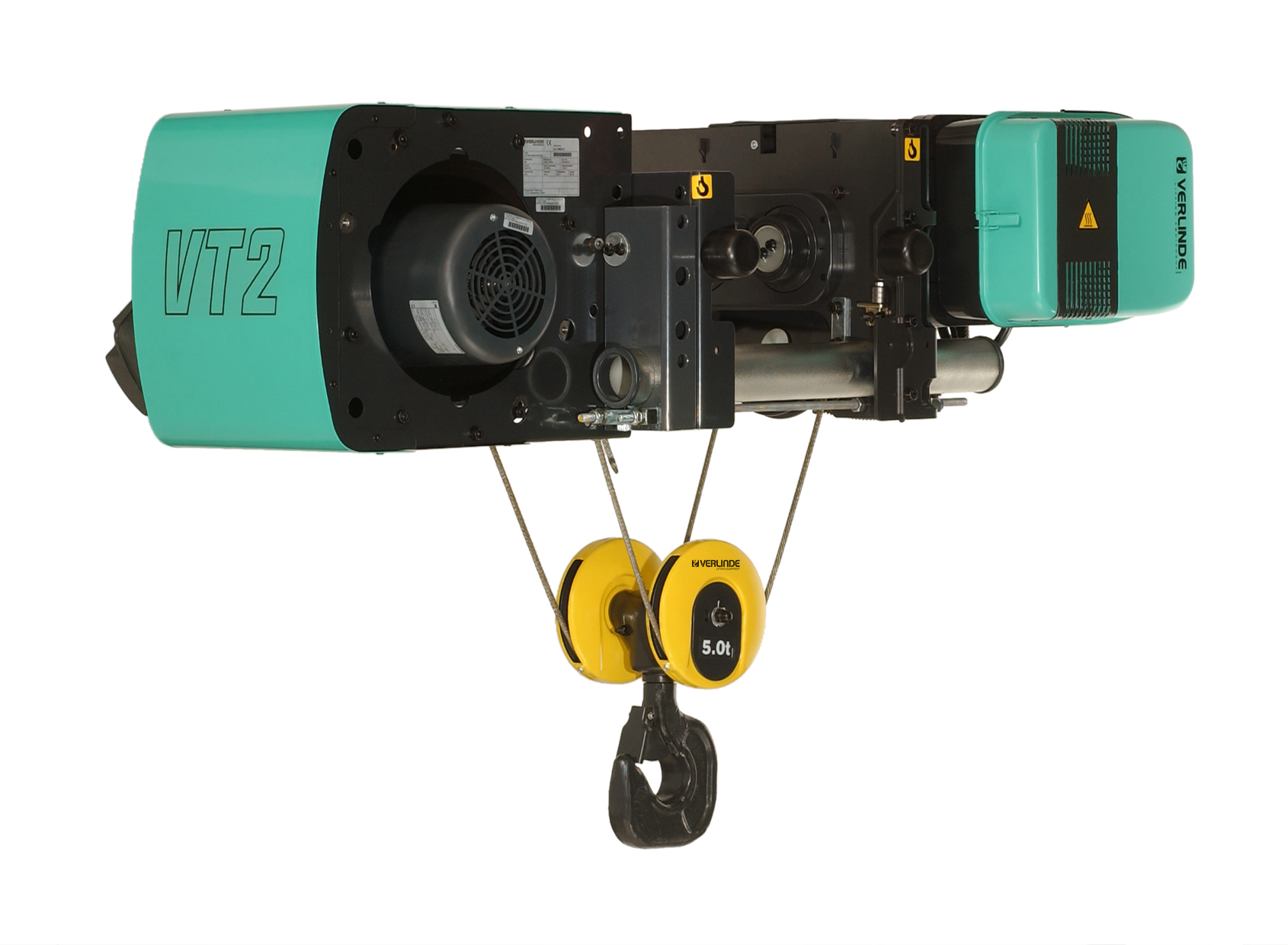

EUROBLOC VT

EuroblocVT.pdf

  • Max capacity: 800 - 80 000 kg
  • 2-speed hoisting motor
  • Maintenance-free DC disc brake.
  • 4-position limit switch
  • Load limiter.
  • Monitor MT2, supervisor unit for the hoist.
  • 3 to 20 m/min variable speed travelling motor.
  • Electrical cabinet with low voltage transformer and switchgear.
  • Safety on/off.
  • Standard 380V/400V/415V/50Hz, 440V/460V/60Hz power supply.
  • IP55 / Class F protection system for motors.
  • Tropicalised for travelling and lifting.
  • Cable guide for difficult environments.
  • Time counter.

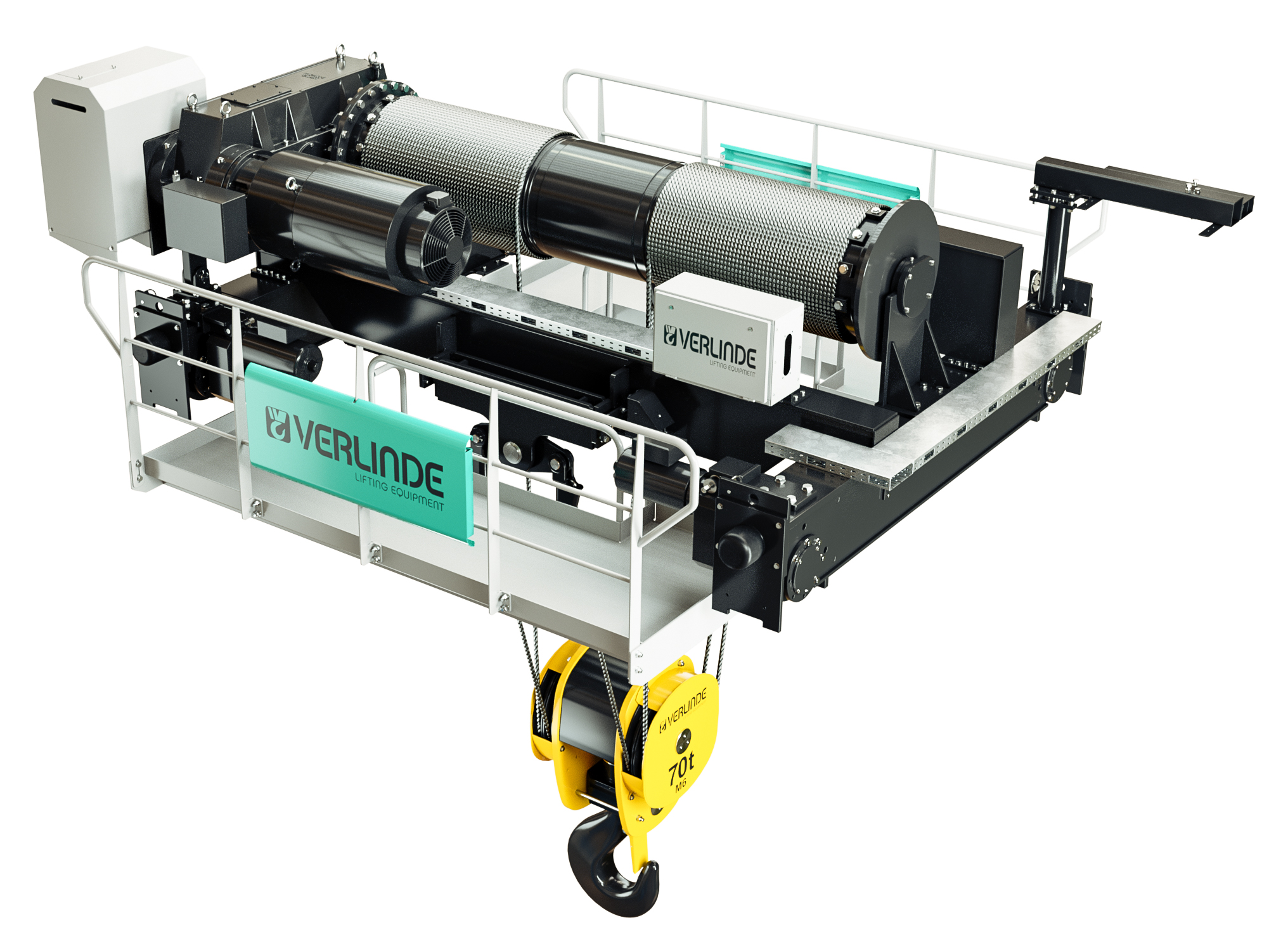

PDW

PDW-gb.pdf

  • Max capacity: 6 300 - 70 000 kg
  • Hoisting speeds 10 m/min and 20 m/min (ESR speed for hoisting.)
  • Trolley speed control (inverter for variable speed drive) from 20 m/min to 61 m/min.
  • PDW is designed according to EN standards (rope safety factor is always 5) and target for heavy duty class when product is requested according to FEM standard, lifting capacity is de-rated to comply higher rope safety factor.
  • Reeving: 2 x 2 and 2 x 4 reeving’s available.
  • Built in standard features to enhance the safety: hoist condition monitoring device; Upper and lower, slow down and stop limits for hoist with weighted ultimate upper switch; Trolley and bridge travel slow down & stop limits; Safety features: over speed and overload protection.
  • PDW is equiped with ESR as standard.

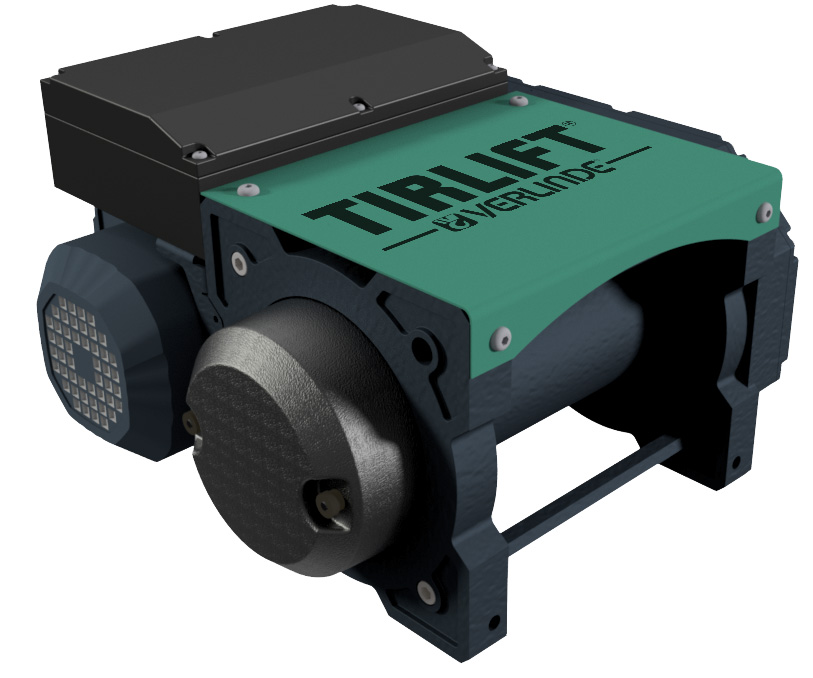

TRILIFT 2

  • Max capacity: 125 - 1 500 kg
  • Class FEM 1Am, 2m
  • Protection of electrical components (control panel and motor), type IP55.
  • Totally enclosed, life lubrificated, helicoidal gear treated (type according load range).
  • One or two lifting speed or variable speed.
  • A start/stop contactor (for type B and C equipment).
  • A 48 V Low Voltage transformer (for type B and C equipment).
  • A wide line of hoisting motor with insulation class F, IP 55 protection.
  • Spring loaded disc brake.
  • A modular and evolutional under-frame allowing many directions for wire rope outlets from the drum.

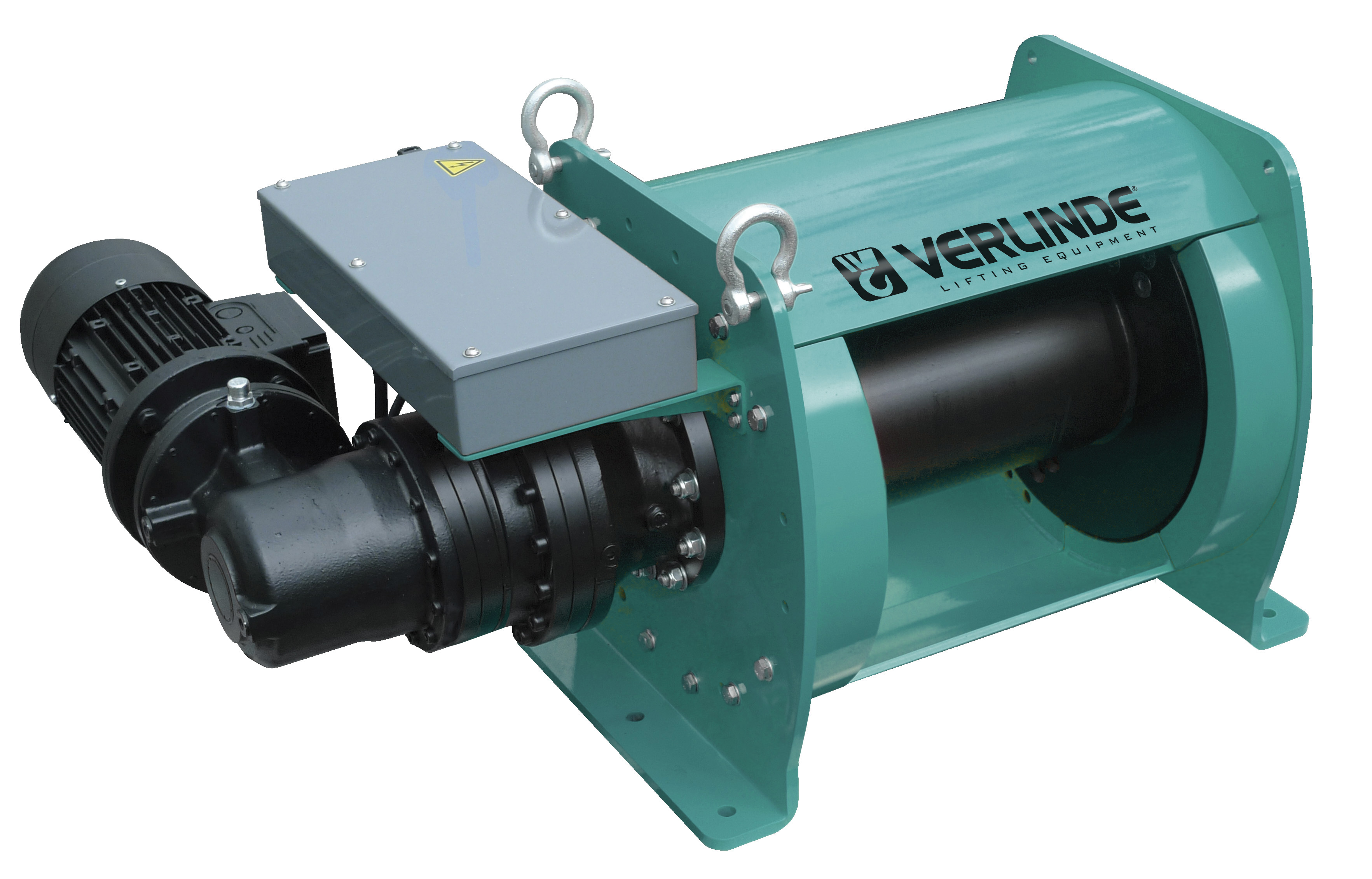

TVI

  • Max capacity: 1 000 - 10 000 kg
  • Power supply 230 / 400 V / 3 Ph / 50Hz.
  • IP55 motor brake unit.
  • Low voltage control 24V - Thermal circuit breaker.
  • Electric cubicle IP 55 on the winch.
  • Drum length : 350 mm.
  • Planetary gear box.
  • Push button box with emergency stop.
  • 3 meter control cable.
  • Several rope exit and options available.

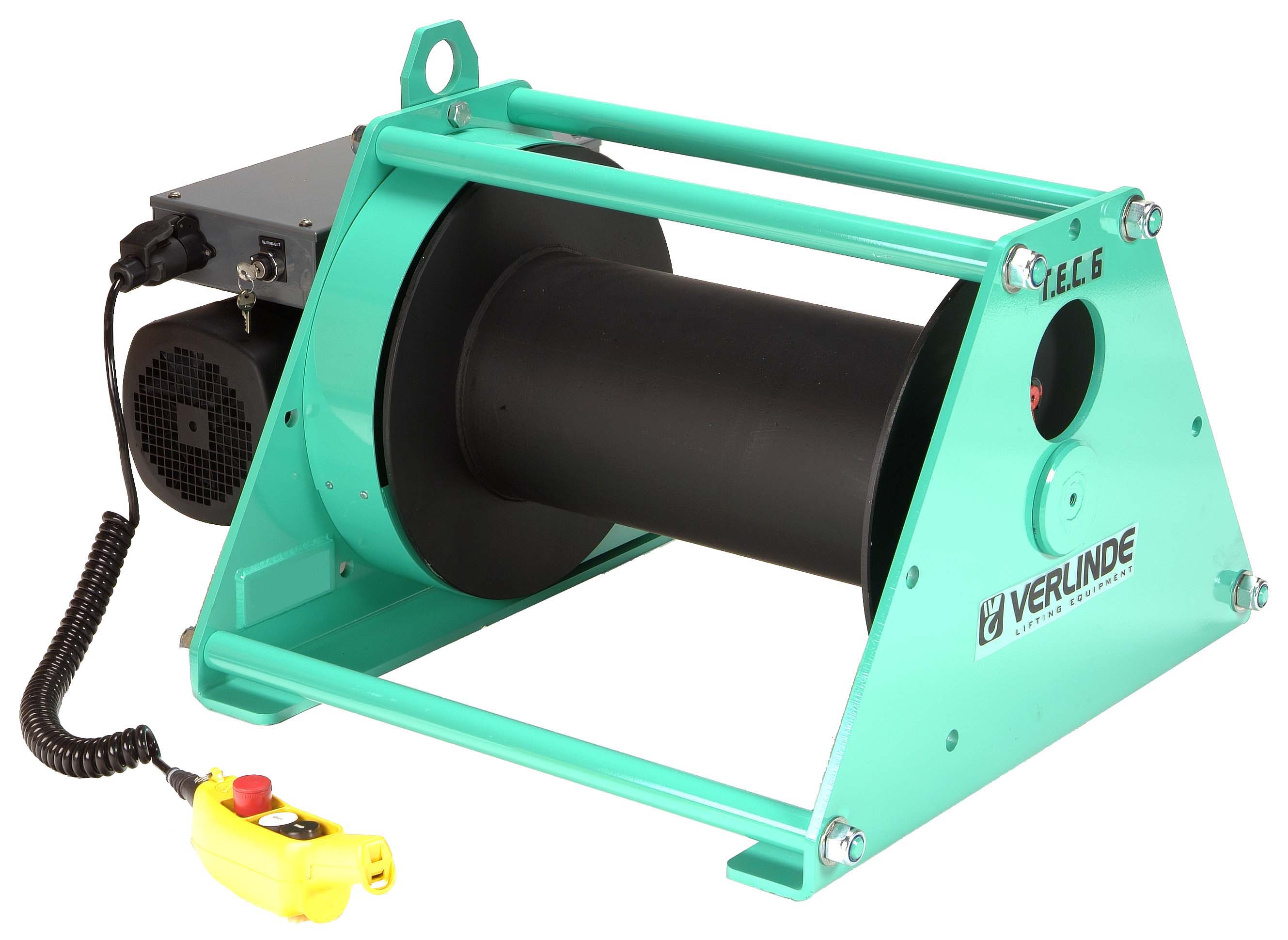

TEC

  • Max capacity: 600 - 7 500 kg
  • A frame of modular and open-ended design, permitting for instance multiple cable exit directions from the drum
  • 230 / 400 V / 3 Ph / 50Hz power supply
  • Control voltage 24 V switchgear. Thermic control circuit breaker
  • Electric cabinet to IP 55
  • Handset with emergency stop on 3m sprially wound cable

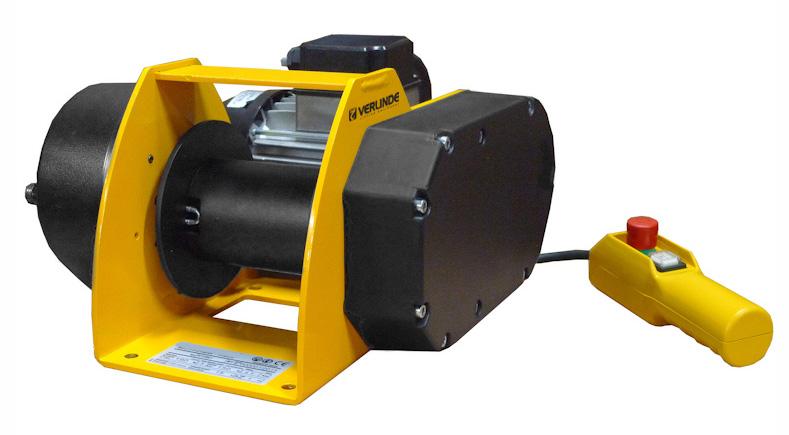

MR

  • Max capacity: 150 - 500 kg
  • Power supply 230 / 1 Ph / 50Hz.
  • Electric cubicle.
  • Direct control.
  • Limit switches as standard (2 steps).
  • IP 44 MR1 - IP 54 MR2 & 3.
  • Push button box with emergency stop.
  • 3 meter control cable.
